Description

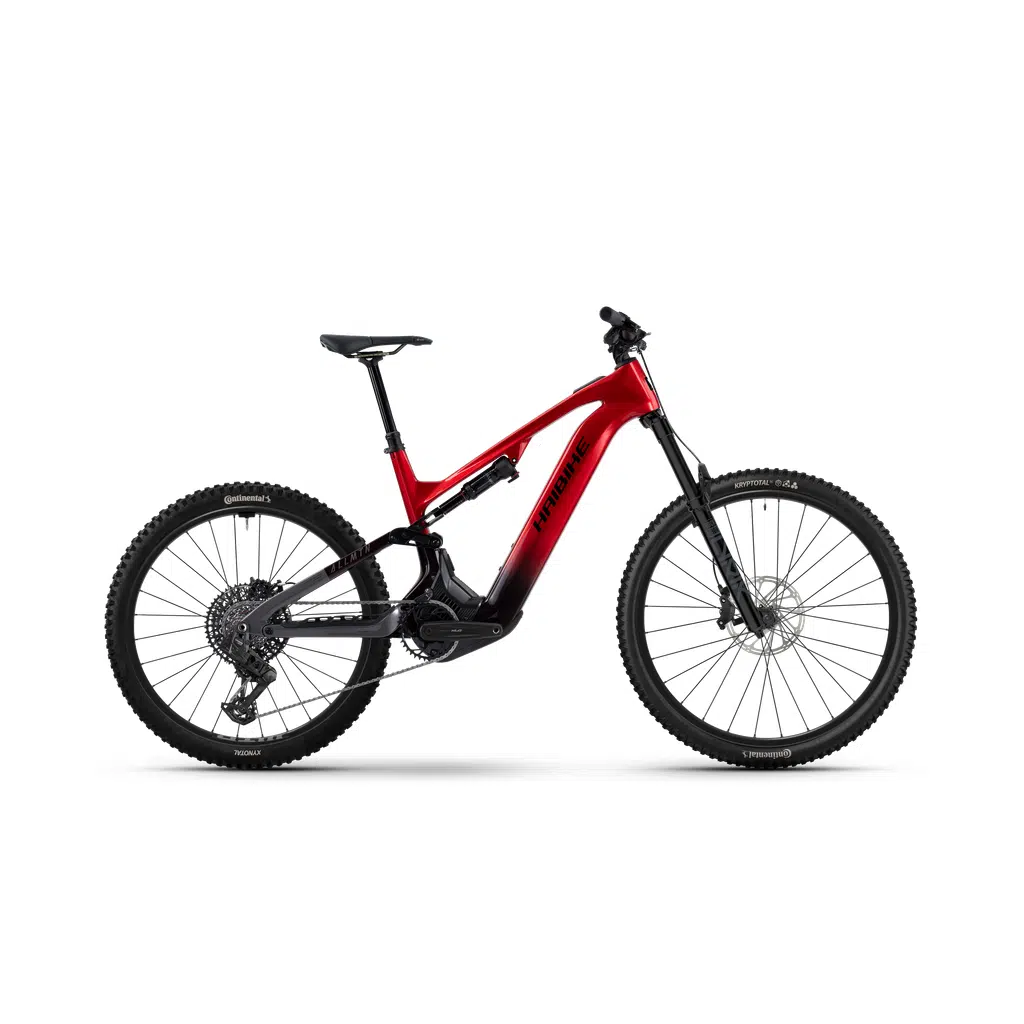

Haibike ALLMTN CF 9 Electric Bike
+ Bosch Performance Line CX Motor
+ 800Wh Bosch Battery
+ New 2026 Model
The Haibike ALLMTN CF 9 is built for riders who want to dominate every climb and descend with confidence. Engineered around the powerful Bosch Performance CX motor, this sporty all-mountain eMTB features a uniquely rotated motor design inside its lightweight carbon frame for improved heat management and maximum efficiency when the trail gets demanding. The advanced suspension kinematics, paired with a horizontal shock layout, deliver exceptional control and comfort, while the mullet wheel setup and 160mm RockShox fork ensure smooth handling and confidence-inspiring performance on even the roughest terrain.
Designed for big days in the mountains, the ALLMTN CF 9 comes equipped with a high-capacity 800Wh battery, giving you the freedom to explore further and ride longer. For epic alpine adventures, you can boost your range even more with the optional 250Wh range extender. From technical climbs to fast, flowing descents, this eMTB blends power, precision and endurance into one premium package – making every ride feel effortless and every trail an invitation to push your limits.
Range Estimation Tool
To get a clearer idea of how far you can ride on a single charge, we recommend using the Bosch eBike Range Calculator. This tool helps estimate potential range based on real world riding conditions. Please make sure you select the correct motor and battery when using the calculator, as total distance will vary depending on battery capacity, rider and luggage weight, assistance level and overall riding style.
Important Information
This electric bike complies fully with current Electric Power Assisted Cycles regulations. Any modification to the bike will invalidate the warranty. Changes that increase motor power or assisted top speed may also make the rider legally liable. Except for statutory obligations, Rapid Scooter Master cannot accept responsibility for any injury or damage resulting from unauthorised modifications to this product.
Haibike ALLMTN CF 9 Top Features
- Bosch Performance Line CX Motor (100 Nm):
Delivers powerful, responsive assistance for steep climbs and fast accelerations, giving you total confidence on demanding all-mountain terrain. - 800Wh Integrated Battery: Provides outstanding range for long alpine adventures, with the option to add a 250Wh range extender when you want to push even further.
- Carbon Frame with Rotated Motor Design: Innovative motor positioning improves heat management and efficiency, ensuring consistent performance even on the toughest rides.
- Advanced Suspension Kinematics with Horizontal Shock: Newly developed rear suspension layout enhances traction, control, and comfort, smoothing out rough descents and technical trails.
- 160mm RockShox Fork: Soaks up big hits and uneven terrain with ease, delivering confidence and stability on aggressive downhill sections.
- Mullet Wheel Setup (29” front / 27.5” rear): Combines the rollover speed of a 29” front wheel with the agility of a smaller rear wheel for the perfect balance of control and playfulness.
- Professional PDI and Firmware Check: Every bike is fully tested by our expert technicians before dispatch, including a complete pre delivery inspection and firmware update, so your Haibike arrives in perfect working order and ready to ride!
Product Specification
| Model | Haibike ALLMTN CF 9 |
|---|---|
| Battery | Bosch PowerTube 800Wh |
| Charger | Bosch Charger 4A 220-240V |
| Display | Bosch Kiox 300 + Mini Remote |
| Max Speed | 15.5mph (25km/h) |
| Motor | Bosch Performance Line CX |
| Motor torque (nm) | 100 Nm |
| Cassette | Sram XS-1275 Eagle T-Type, XD |
| Chain | Sram GX Eagle T-Type 12s |
| Crankset | XLC, CR-E18 CRNKS + SRAM CR T-Type Bosch DU38, DM 36T |
| Derailleur Rear | Sram S1000 Eagle AXS T-Type 12s, wireless, 12-speed |
| Gear | Sram Derailleur |
| Number of gears | 12 |
| Shifter Right | Sram AXS Pod Controller, Trigger shifter |
| Frame | Carbon, Disc Brake Post Mount |
| Frame shape | High |
| Max permissible weight (Rider, Cargo and Bike) | 135 kg |
| Front Fork | RockShox Lyrik Base Rush RC, DebonAir+, Offset: 44 mm, Travel: 160mm |
| Rear travel | 150 mm |
| Travel | 160 mm |
| Brake light | No |
| Brake Rear | Magura MT5, 4 pistons, 203 mm |
| Front brake | Magura MT5, 4 pistons, 203 mm |
| Grip kind | MTB Grip Set VLG-1751D2 |
| Handlebar | Haibike TheBar++ Dia. 31.8 mm 780 mm |
| Pedal | VP VPE-527 Alloy w/ Reflector |
| Saddle | Selle Royal Vivo |
| Seatpost | Limotec A4H Dropper, Dia. 34.9 mm, Travel: 125 mm |
| Front wheel size | 29 inches |
| Rear wheel size | 27.5 inches |
| Rim | WTB ST i30 TCS 2.0 29" 32H |
| Tyre | Schwalbe Magic Mary, Super Trail, EVO, ADDIX Soft, 50EPI, 62-622 |
| Haibike ALLMTN CF 9 | ||||
|---|---|---|---|---|
| Frame Size | S | M | L | XL |
| Stand over height (mm) | 770 | 770 | 770 | 770 |
| Stack height (mm) | 631 | 640 | 649 | 658 |
| Bottom bracket drop (mm) | 13.5 | 13.5 | 13.5 | 13.5 |
| Wheel size (inch) | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
| Seat tube length (mm) | 400 | 430 | 460 | 490 |
| Wheelbase (mm) | 1211 | 1245 | 1279 | 1313 |
| Reach (mm) | 427 | 456 | 487 | 516 |
| Head tube length (mm) | 110 | 120 | 130 | 140 |
| Top tube length in millimeters | 560 | 592 | 625 | 657 |
| Chainstay length (mm) | 450 | 450 | 450 | 450 |
| Seat tube angle | 74.2 | 74.2 | 74.2 | 74.2 |
| Head tube angle | 65 | 65 | 65 | 65 |
Is it easy to assemble my Haibike ALLMTN CF 9?
The Haibike ALLMTN CF 9 comes mostly assembled and only minor things need to be assembled. This should not take longer than 10-20 minutes to do.
Is the Haibike ALLMTN CF 9 Waterproof?
The Haibike ALLMTN CF 9 is water-resistant, rated at IP65, but not waterproof. Short term, your e-bike can get wet and be in the rain, but any long-term exposure can cause serious problems.
Range and speed are dependent on riders’ weight, road surface, wind, and other conditions. This E-Bike is not fully waterproof, please do not ride it in extreme rain or wet conditions.
