Description

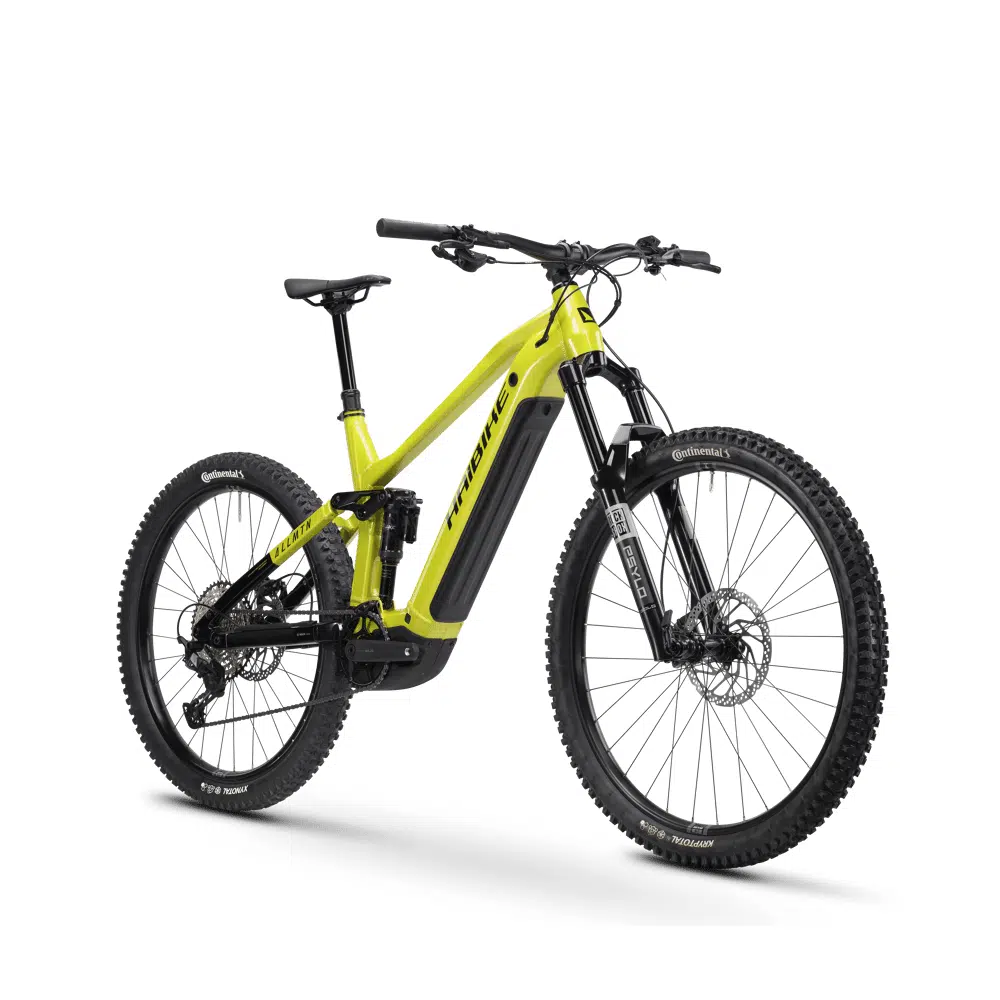

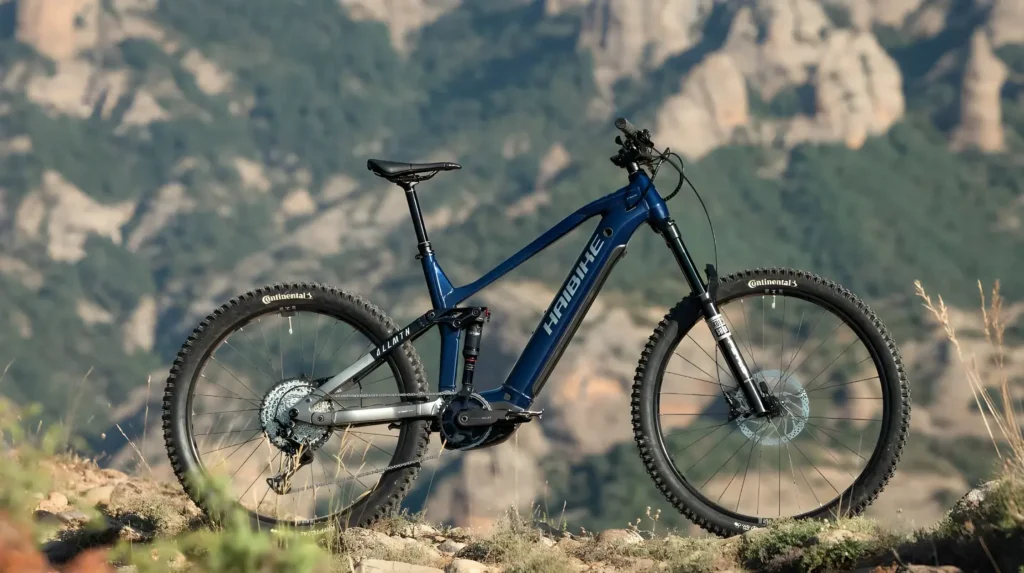

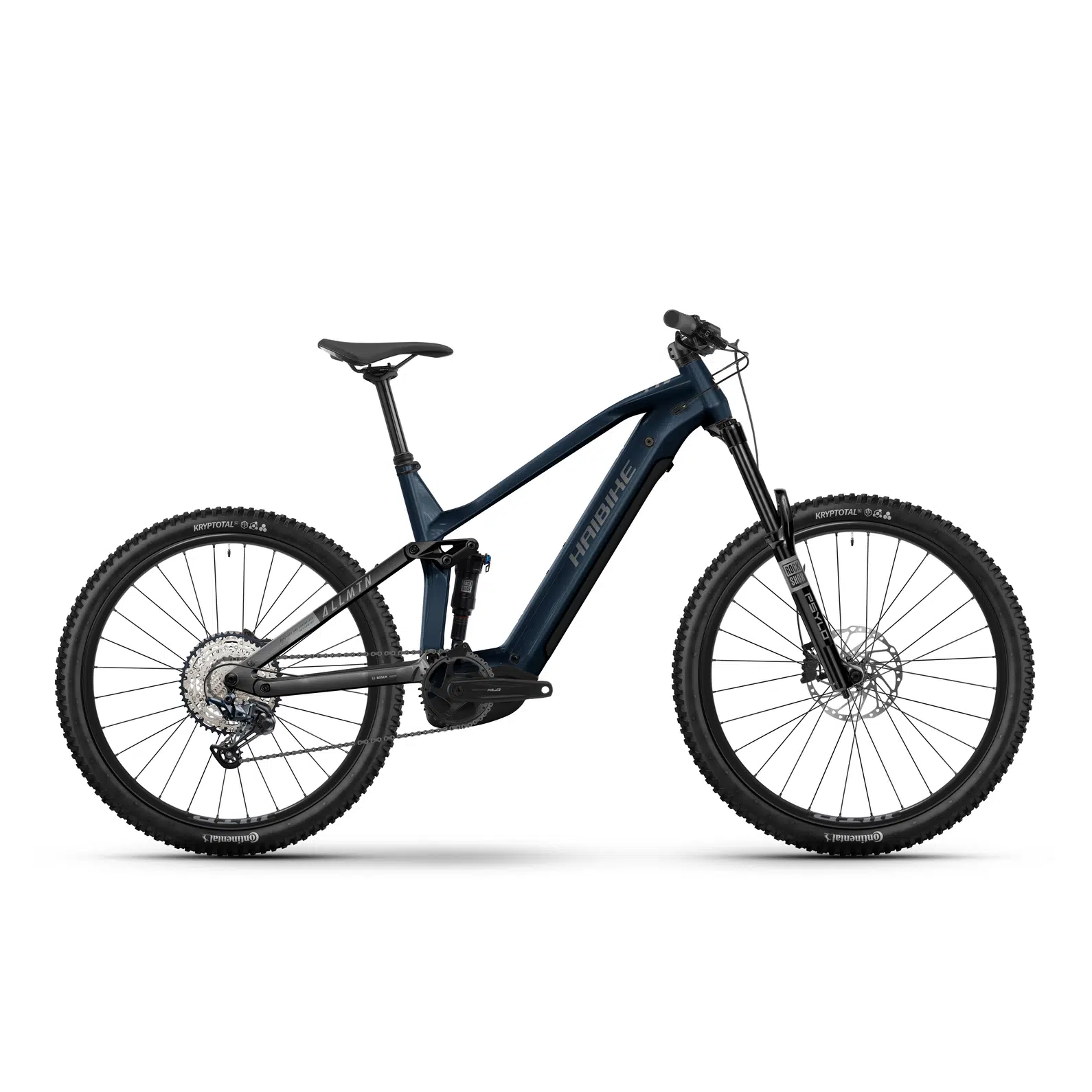

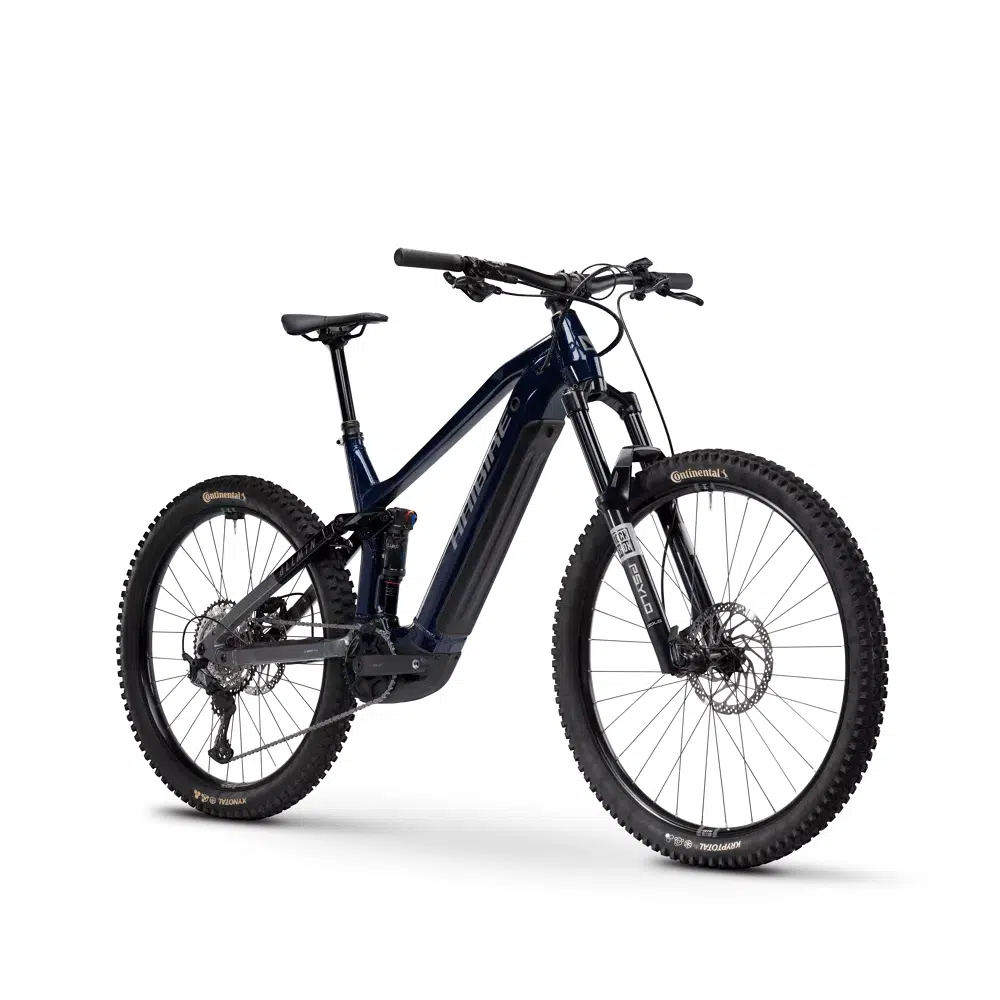

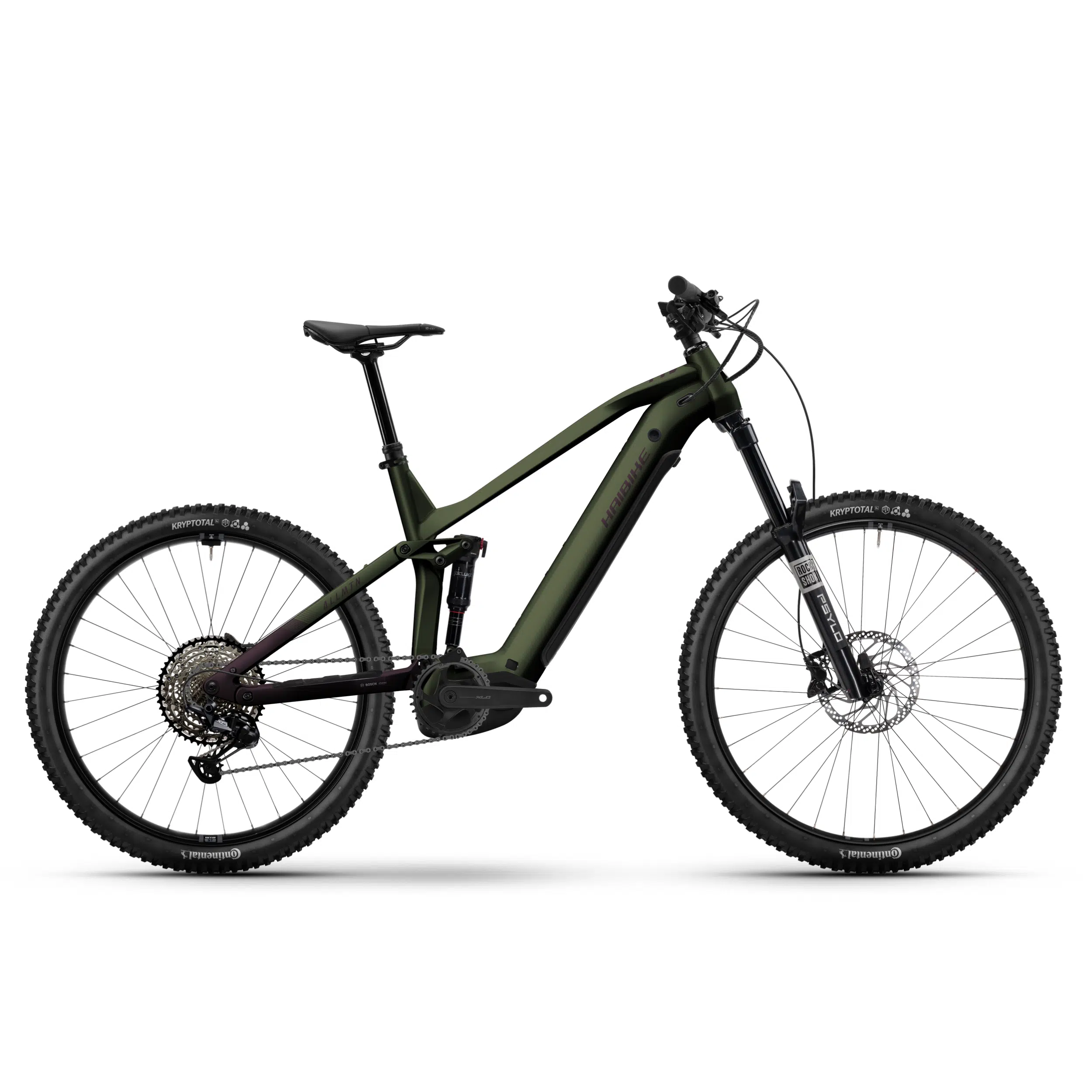

Haibike ALLMTN 6 Electric Bike
+ Bosch Performance Line Motor
+ 800Wh battery
+ New 2025 Model
Meet the Haibike ALLMTN 6, engineered for fearless mountain adventures uphill, downhill, and across the most rugged terrain. Built on Haibike’s tailored all-mountain aluminum frame and powered by the high-torque Bosch Performance Line CX motor with 85 Nm, this e-MTB ensures no trail is too steep. Its smart mullet wheel configuration with a 29-inch front and 27.5-inch rear, paired with 160 mm front and 150 mm rear suspension travel via the RockShox Psylo Gold RC fork and Deluxe Select+ shock, delivers a perfect mix of stability, agility, and control on technical descents and tight singletrack.
Ride longer with the integrated Bosch InTube 800 Wh battery and monitor every detail through the Bosch Kiox 300 display with LED remote. An optional Range Extender offers even more mileage for epic adventures. The Shimano SLX 12-speed drivetrain provides smooth and responsive shifting, while Shimano Deore MT420 four-piston hydraulic disc brakes deliver powerful and reliable stopping performance. From steep climbs to flowing trails, the ALLMTN 6 blends power, control, and endurance for riders who demand the very best from every ride.
Top Features

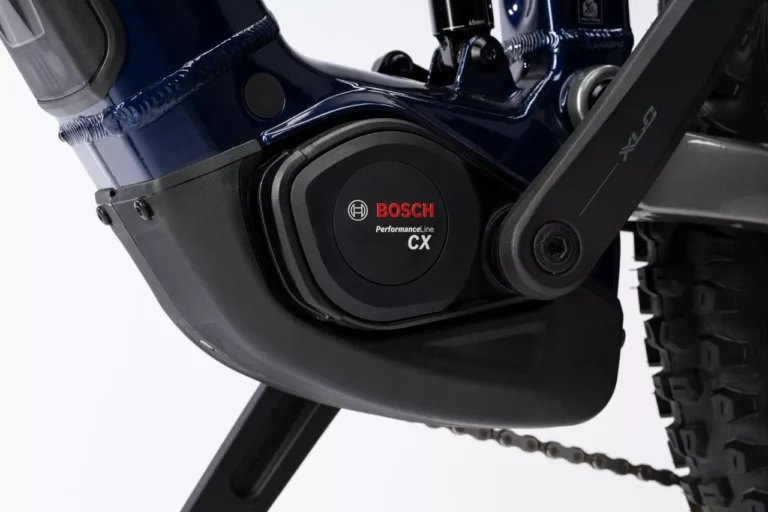

- Bosch Performance Line CX Motor : Delivers powerful assistance with 85 Nm of torque for confident climbing and fast acceleration.
- 800 Wh Bosch InTube Battery : Offers long-lasting power for extended rides, with an optional Range Extender for even greater distance.
- Mullet Wheel Setup : Combines a 29-inch front wheel for stability with a 27.5-inch rear wheel for agile handling on technical trails.

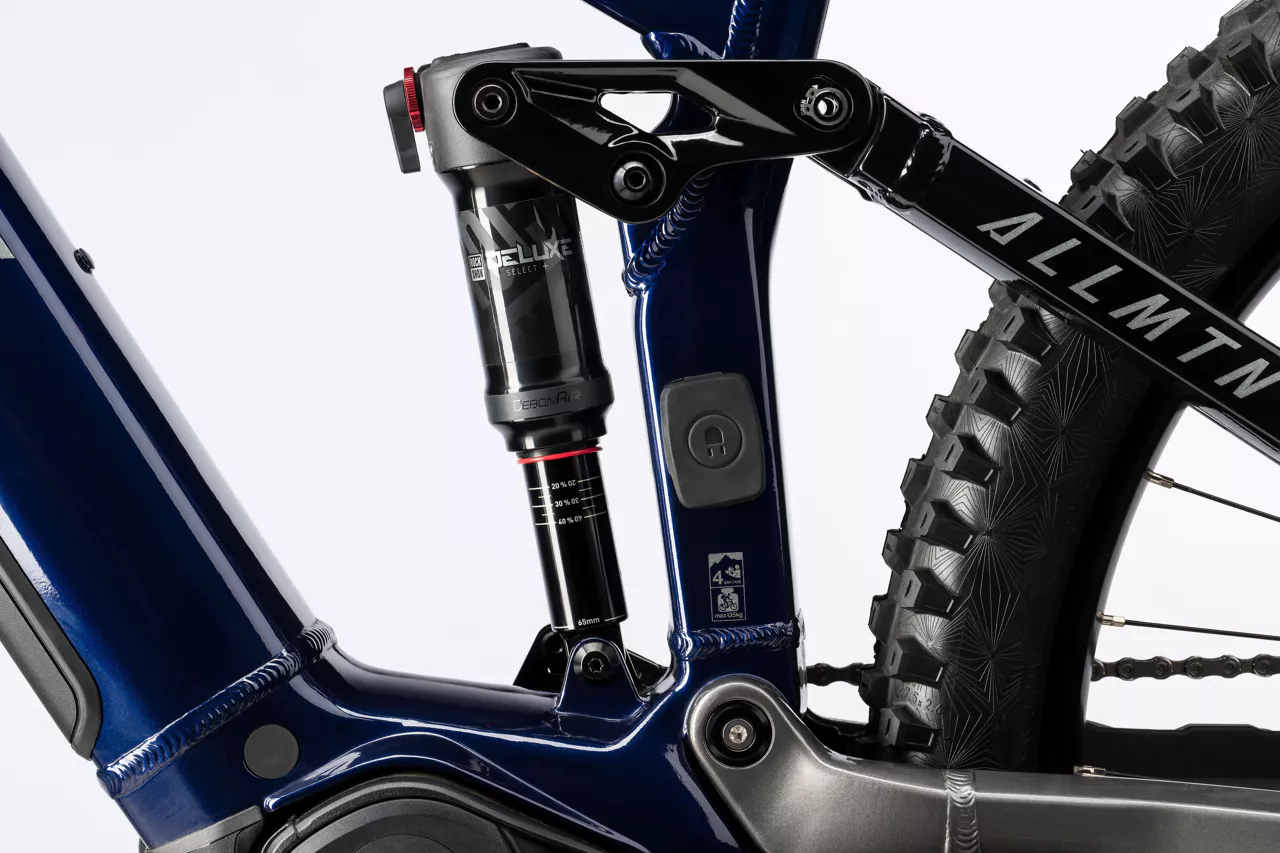

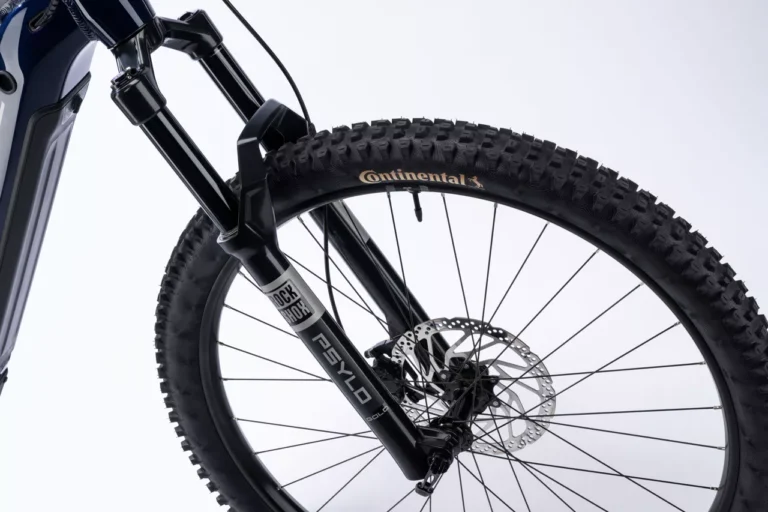

- Premium Suspension : Features 160 mm RockShox Psylo Gold RC fork and 150 mm RockShox Deluxe Select+ shock for smooth performance over rough terrain.
- Shimano SLX 12-Speed Drivetrain : Ensures precise and reliable shifting across varied gradients and trail conditions.
- Shimano Deore MT420 4-Piston Hydraulic Disc Brakes : Provides strong, controlled stopping power for steep and challenging descents.
- All-Mountain Aluminum Frame : Combines durability and lightweight construction for aggressive off-road riding.

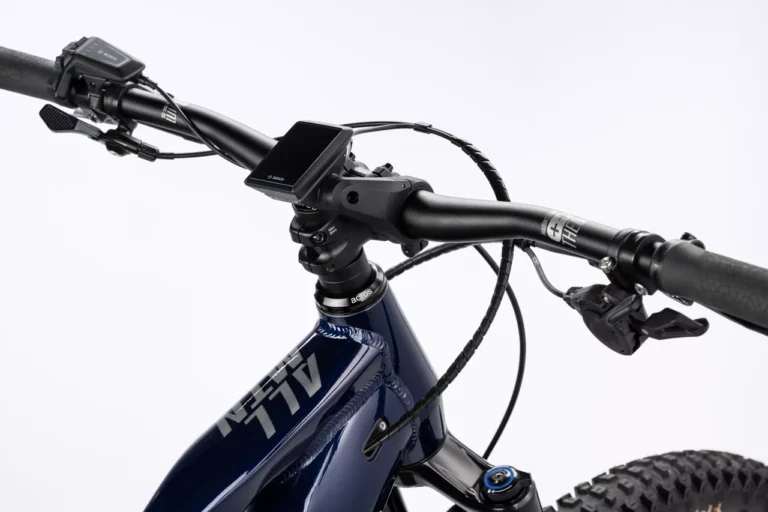

- Bosch Kiox 300 Display with LED Remote : Offers clear ride data and intuitive control for a seamless riding experience.
Product Specification
| Model | Haibike ALLMTN 6 |
|---|---|
| Battery | Bosch InTube 800 Wh |
| Range | Up to 30 - 160 miles |
| Charger | Bosch Charger 4A 220-240V |
| Display | Bosch Kiox 300 + LED Remote |
| Max Speed | 15.5mph (25km/h) |
| Motor | Bosch Performance Line CX |
| Motor torque (nm) | 85 Nm |
| Cassette | Shimano SLX CS-M7100-12, MICRO SPLINE |
| Chain | Shimano Chain Deore CN-M6100 12s |
| Crankset | Miranda Crius ISIS Crankset + Chainring for Bosch BDU38 160 |
| Derailleur Rear | Shimano SLX RD-M7100-SGS 12s, Shadow+ |
| Frame | High Aluminium Uni |
| Gear | Shimano Derailleur |
| Max permissible weight (Rider, Cargo and Bike) | 135 kg (297.6 lbs) |
| Number of gears | 12 |
| Shifter Right | Shimano Triggershift Deore SL-M6100-R, Rapidfire+ |
| Front Fork | Rockshox Psylo Gold RC, Crown Adj, DebonAir 160 mm |
| Rear travel | 150 mm |
| Shock | Rockshox Deluxe Select+ RT 205x65mm, Trunnion, DebonAir+ |
| Travel | 160 mm |
| Brake Light | No |
| Brake Rear | Shimano Hydraulic Disc brake Deore BR-MT420, 4 pistons, resin pad, 203 mm |
| Front brake | Shimano Hydraulic Disc brake Deore BR-MT420, 4 pistons, resin pad, 203 mm |
| Grip kind | MTB Grip Set VLG-1751D2 |
| Handgrip brand | XLC |
| Handlebar | Haibike Flat bar TheBar++ Dia. 31.8 mm |
| Pedal | VP VPE-527 Alloy w/ Reflector |
| Saddle | Prologo Proxim W400 T2.0 153 mm |
| Seatpost | Limotec Dropperpost A1H Dropper, Dia. 34.9 mm, Travel: 125 mm |
| Haibike ALLMTN 6 Geometry | ||||
|---|---|---|---|---|
| Frame Size | S | M | L | XL |
| Stand over height (mm) | 770 | 770 | 760 | 760 |
| Stack height (mm) | 651 | 651 | 656 | 656 |
| Bottom bracket drop (mm) | 20 | 20 | 20 | 20 |
| Wheel size (inch) | 29"F/27.5"R | 29"F/27.5"R | 29"F/27.5"R | 29"F/27.5"R |
| Seat tube length (mm) | 405 | 435 | 465 | 485 |
| Wheelbase (mm) | 1206 | 1233 | 1268 | 1303 |
| Reach (mm) | 408 | 435 | 468 | 501 |
| Head tube length (mm) | 130 | 130 | 135 | 140 |
| Top tube length in millimeters | 567 | 594 | 628 | 662 |
| Chainstay length (mm) | 455 | 455 | 455 | 455 |
| Seat tube angle | 75 | 75 | 75 | 75 |
| Head tube angle | 64.5 | 64.5 | 64.5 | 64.5 |
Review Video of the Haibike ALLMTN 6 Electric Bike
Is it easy to assemble my Haibike ALLMTN 6?
The Haibike ALLMTN 6 comes mostly assembled and only minor things need to be assembled. A tool kit and manual for assembly will be provided, and this should not take longer than 20-30 minutes to do.
Is the Haibike ALLMTN 6 Waterproof?
The Haibike ALLMTN 6 is water-resistant, rated at IP65, but not waterproof. Short term, your e-bike can get wet and be in the rain, but any long-term exposure can cause serious problems..
Range and speed are dependent on riders’ weight, road surface, wind, and other conditions. This E-Bike is not fully waterproof, please do not ride it in extreme rain or wet conditions.
