Description

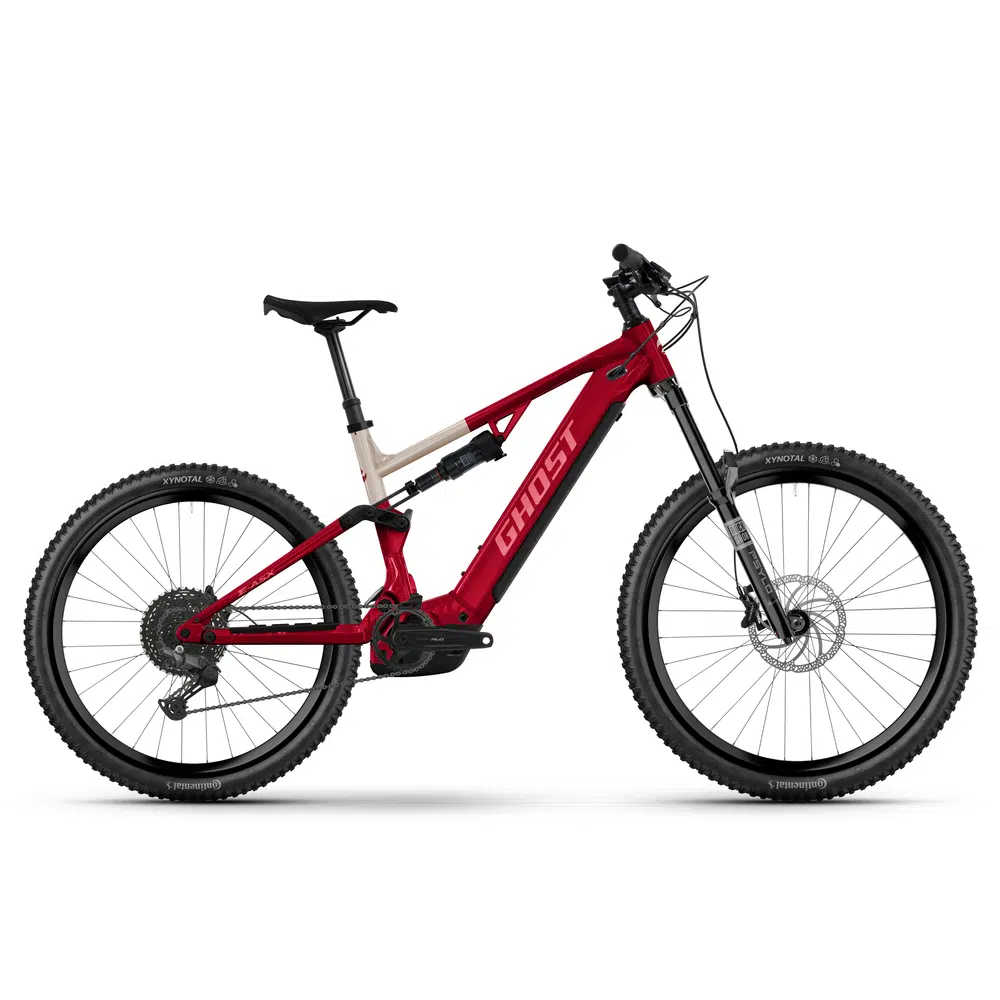

Ghost 2026 E-ASX ESSENTIAL Electric Bike
+ Bosch Performance Line CX Motor
+ 600Wh battery
+ New 2026 Model
The GHOST E-ASX ESSENTIAL Electric Bike is built for riders who want to conquer serious trails without stretching their budget. Featuring a sophisticated aluminium frame and a powerful Bosch Performance Line CX motor delivering 85Nm of torque, this full suspension e mountain bike gives you the confidence to tackle steep climbs and demanding descents with ease. With 160mm of front travel from the RockShox Psylo Silver RC fork and a RockShox Deluxe Select R rear shock, it is engineered to smooth out rough terrain while maintaining precise control. The 600Wh Bosch Powertube battery is elegantly integrated into the frame for a sleek, streamlined look, while the MX wheel setup with a 29 inch front wheel and 27.5 inch rear wheel adds stability at the front and agility at the back for maximum trail confidence.
Equipped with reliable Shimano CUES 10 speed gearing, powerful Tektro four piston hydraulic disc brakes with 203mm rotors, and Continental Xynotal Trail Endurance tyres, the E-ASX Essential is ready for aggressive touring and all day trail adventures. A Bosch Kiox 300 display with LED remote keeps your ride data at your fingertips, and the 200mm dropper seatpost ensures you are always in the perfect position when the trail turns technical. With a robust build capable of handling up to 150kg and premium components throughout, the GHOST E-ASX ESSENTIAL delivers high performance electric mountain biking at outstanding value.
Range Estimation Tool
To get a clearer idea of how far you can ride on a single charge, we recommend using the Bosch eBike Range Calculator. This tool helps estimate potential range based on real world riding conditions. Please make sure you select the correct motor and battery when using the calculator, as total distance will vary depending on battery capacity, rider and luggage weight, assistance level and overall riding style.
Important Information
This electric bike complies fully with current Electric Power Assisted Cycles regulations. Any modification to the bike will invalidate the warranty. Changes that increase motor power or assisted top speed may also make the rider legally liable. Except for statutory obligations, Rapid Scooter Master cannot accept responsibility for any injury or damage resulting from unauthorised modifications to this product.
Top Features
- Bosch Performance Line CX Motor: Delivers powerful, responsive assistance with up to 100Nm of torque, giving you confident climbing ability and smooth support on demanding trails.
- 600Wh Bosch Powertube Battery: Fully integrated into the frame for a sleek finish, providing long lasting range for extended trail rides and all day adventures.
- RockShox Psylo Silver RC 160mm Fork: Offers plush, controlled suspension performance with 160mm of travel to absorb rough terrain and maintain precision on technical descents.
- RockShox Deluxe Select R Rear Shock: Enhances traction and comfort with responsive rear suspension, keeping you composed on challenging climbs and fast downhill sections.
- MX Wheel Setup: Combines a 29 inch front wheel for improved rollover and stability with a 27.5 inch rear wheel for agility and playful handling on tight trails.
- Shimano CUES 10 Speed Drivetrain: Provides smooth, reliable shifting and a wide 11 to 48T gear range to handle steep climbs and varied terrain with ease.
- Tektro Four Piston Hydraulic Disc Brakes: Powerful 203mm brakes deliver strong, consistent stopping performance for maximum control in all conditions.
- Bosch Kiox 300 Display with LED Remote: Clear, intuitive ride data display with easy handlebar mounted control for seamless power management on the move.
- 200mm Dropper Seatpost: Allows quick saddle height adjustment for improved control and confidence when transitioning between climbs and descents.
- Professional PDI and Firmware Check: Every bike is fully tested by our expert technicians before dispatch, including a complete pre delivery inspection and firmware update, so your Haibike arrives in perfect working order and ready to ride!
Product Specification
| Model | Ghost E-ASX Essential |
|---|---|
| Battery | Bosch InTube 600 Wh |
| Charger | Bosch Charger 4A 220-240V |
| Display | Bosch Kiox 300 + LED Remote |
| Max Speed | 15.5mph (25km/h) |
| Motor | Bosch Performance Line CX |
| Motor torque (nm) | 100 Nm |
| Cassette | Shimano CUES CS-LG300-10, HG, 11-48T |
| Chain | Shimano Chain CN-LG500 9-11s, LINKGLIDE |
| Crankset | XLC CR-E40 DM Chainring BDU38 + CR-E18 Crankarms |
| Derailleur Rear | Shimano CUES RD-U6000 10/11s, Shadow+ |
| Frame | High Aluminium Uni |
| Gear | Shimano Derailleur |
| Max permissible weight (Rider, Cargo and Bike) | 150 kg (330 lbs) |
| Number of gears | 10 |
| Shifter Right | Shimano Triggershift CUES SL-U6000-10R, Rapidfire+ |
| Front Fork | Rockshox Psylo Silver RC, Crown Adjust, Solo Air, 160 mm |
| Brake light | No |
| Brake Rear | Tektro Hydraulic Disc brake HD-M535, 4 pistons, resin pad, 203 mm |
| Front brake | Tektro Hydraulic Disc brake HD-M535, 4 pistons, resin pad, 203 mm |
| Grip kind | MTB Grip Set VLG-1751D2 |
| Handgrip brand | XLC |
| Handlebar | XLC HB-M34, Dia. 35 mm, Rise: 20 mm, backsweep 9deg. |
| Pedal | XLC Flat Pedal PD-M29 w/ Reflector + integrated Pins |
| Saddle | XLC Sport Comfort SA-S11 Steel Rail 155 mm |
| Seatpost | XLC Dropper SP-T21, Dia. 34.9 mm, Aluminium |
| Front wheel size | 29inch |
| Rear wheel size | 27.5inch |
| Rim Front | XLC WR-M39 Disc 30/622 32H 6,5 mm Valve |
| Rim Rear | XLC WR-M37 Disc 30/584 32H 6,5 mm Valve |
| Tyre | Continental Xynotal Trail Endurance, foldable skin SL |
| Tyre size ETRTO | 60-622 |
GEOMETRY
| Frame size | S | M | L | XL |
|---|---|---|---|---|
| Stack height (mm) | 631 | 641 | 659 | 678 |
| Bottom bracket drop (mm) | 30 | 30 | 30 | 30 |
| Head tube angle | 64 | 65 | 65 | 65 |
| Head tube length in millimeters | 100 | 110 | 130 | 150 |
| Reach in millimeters | 435 | 455 | 475 | 500 |
| Seat tube angle | 76 | 76 | 76 | 76 |
| Stand over height (mm) | 735 | 749 | 748 | 757 |
| Chainstay length in millimeters | 460 | 460 | 460 | 460 |
| Top tube length in millimeters | 587 | 609 | 633 | 663 |
| Seat tube length (mm) | 390 | 430 | 470 | 510 |
| wheelbase (mm) | 1230 | 1248 | 1276 | 1310 |
Is it easy to assemble my GHOST E-ASX ESSENTIAL?
The GHOST E-ASX ESSENTIAL comes mostly assembled and only minor things need to be assembled. A tool kit and manual for assembly will be provided, and this should not take longer than 20-30 minutes to do.
Is the GHOST E-ASX ESSENTIAL Waterproof?
The GHOST E-ASX ESSENTIAL is water-resistant, rated at IP65, but not waterproof. Short term, your e-bike can get wet and be in the rain, but any long-term exposure can cause serious problems..
Range and speed are dependent on riders’ weight, road surface, wind, and other conditions. This E-Bike is not fully waterproof, please do not ride it in extreme rain or wet conditions.
