Description

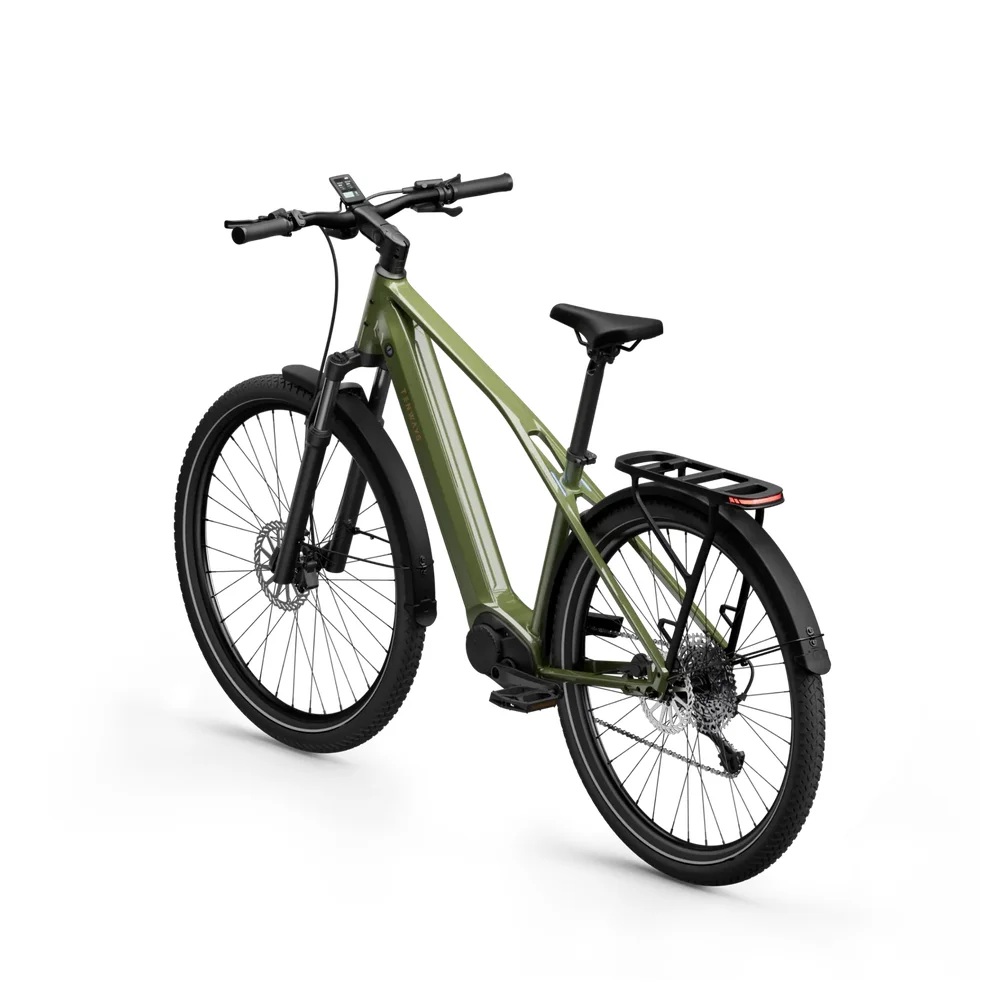

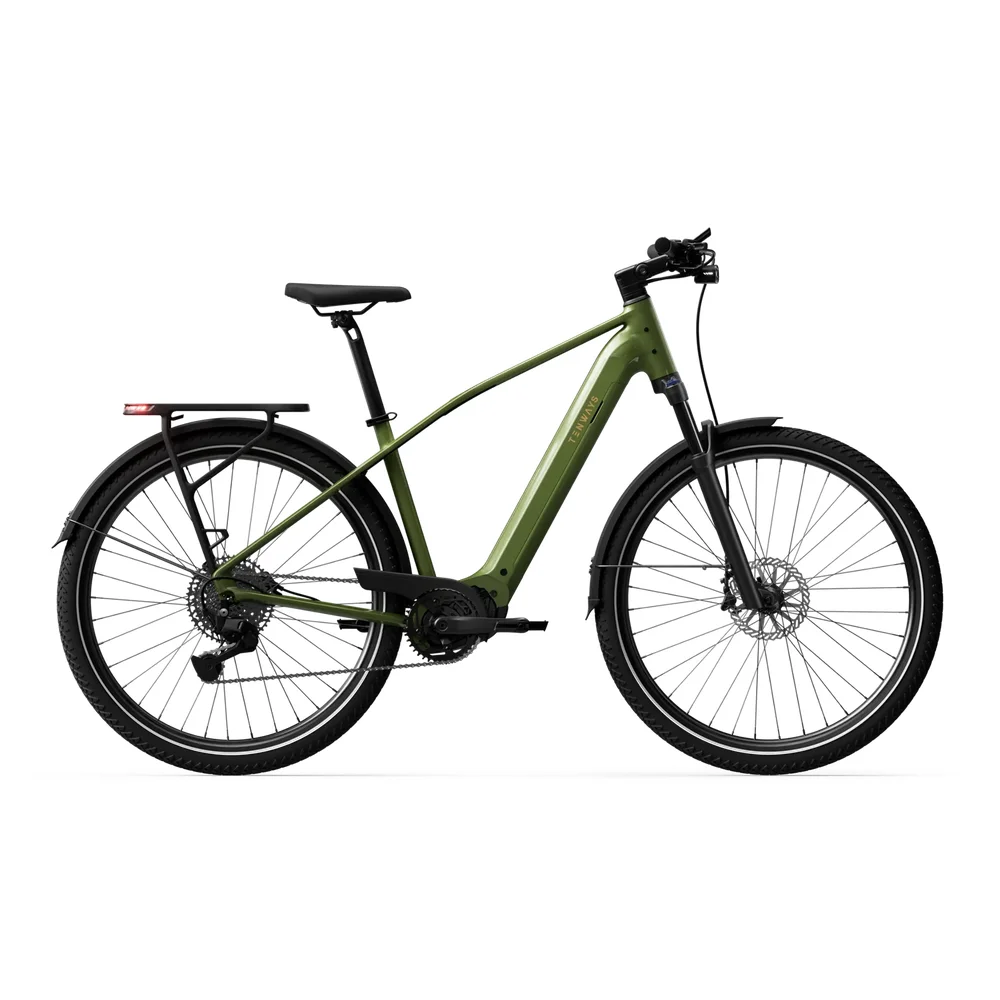

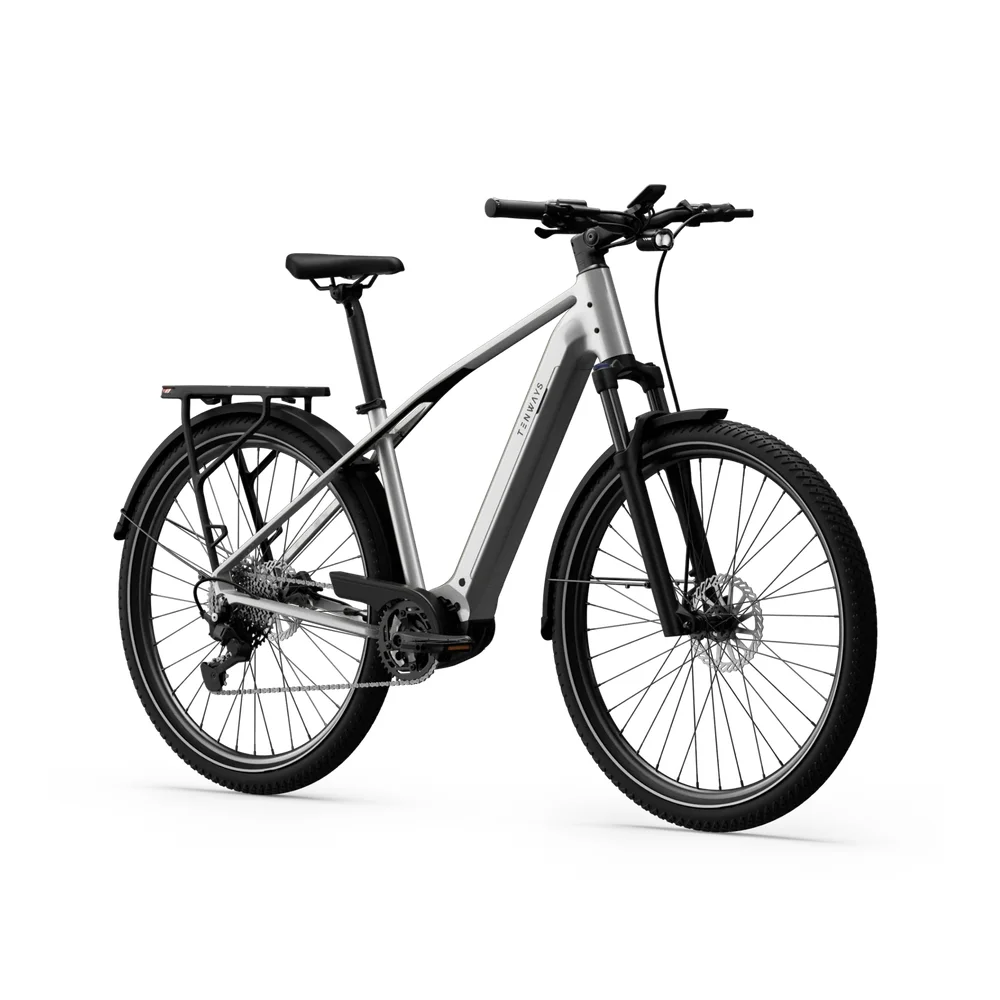

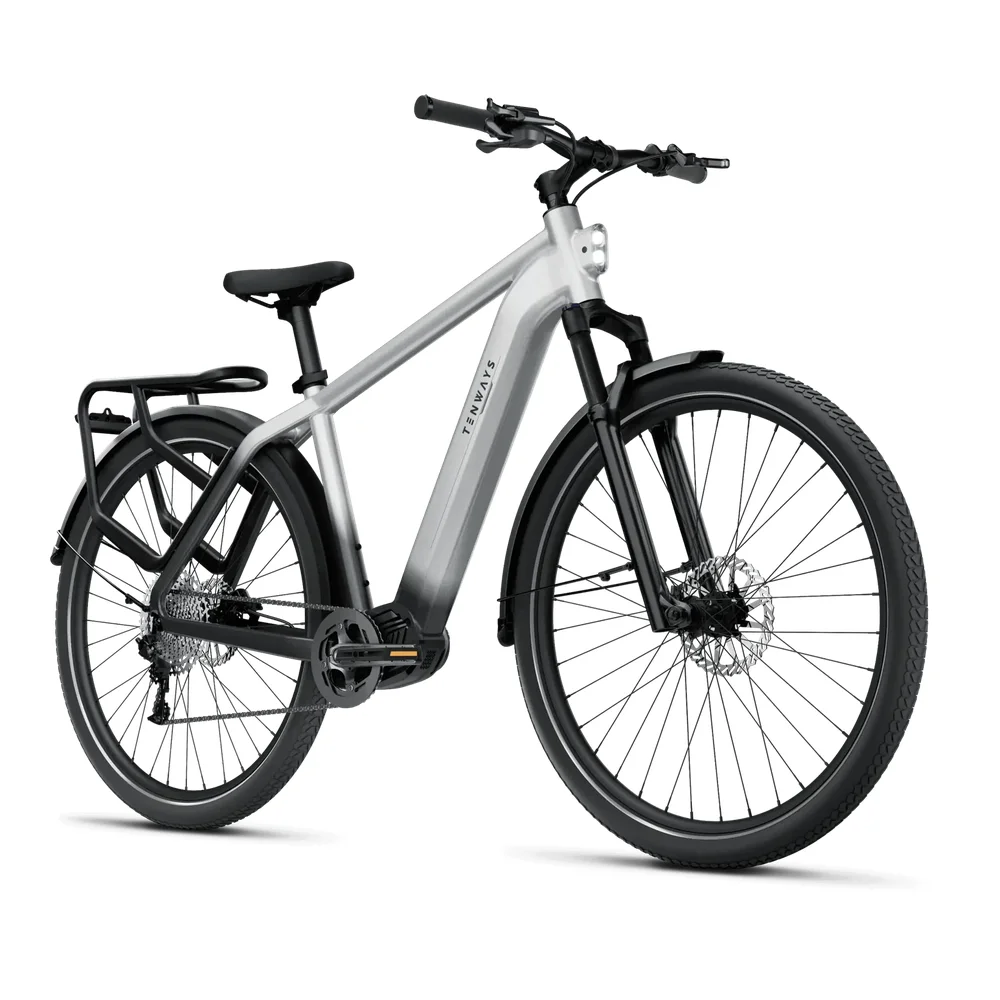

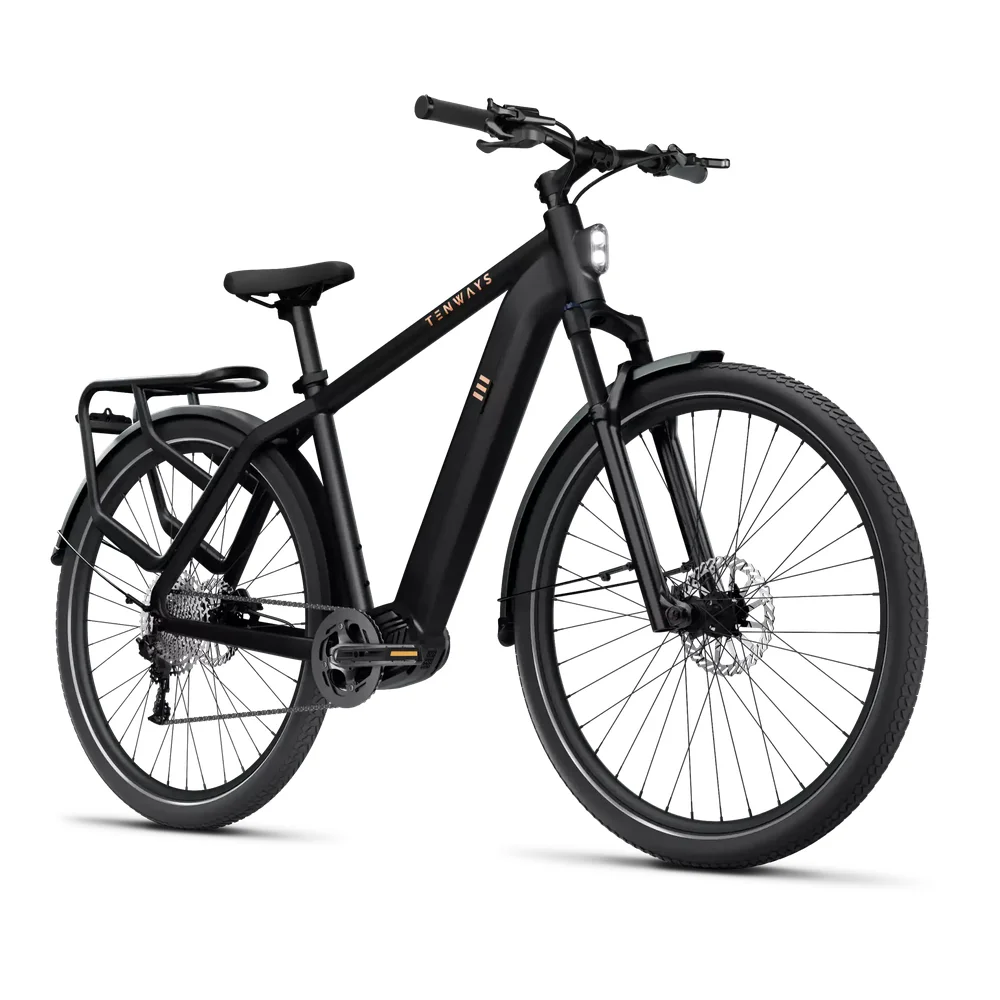

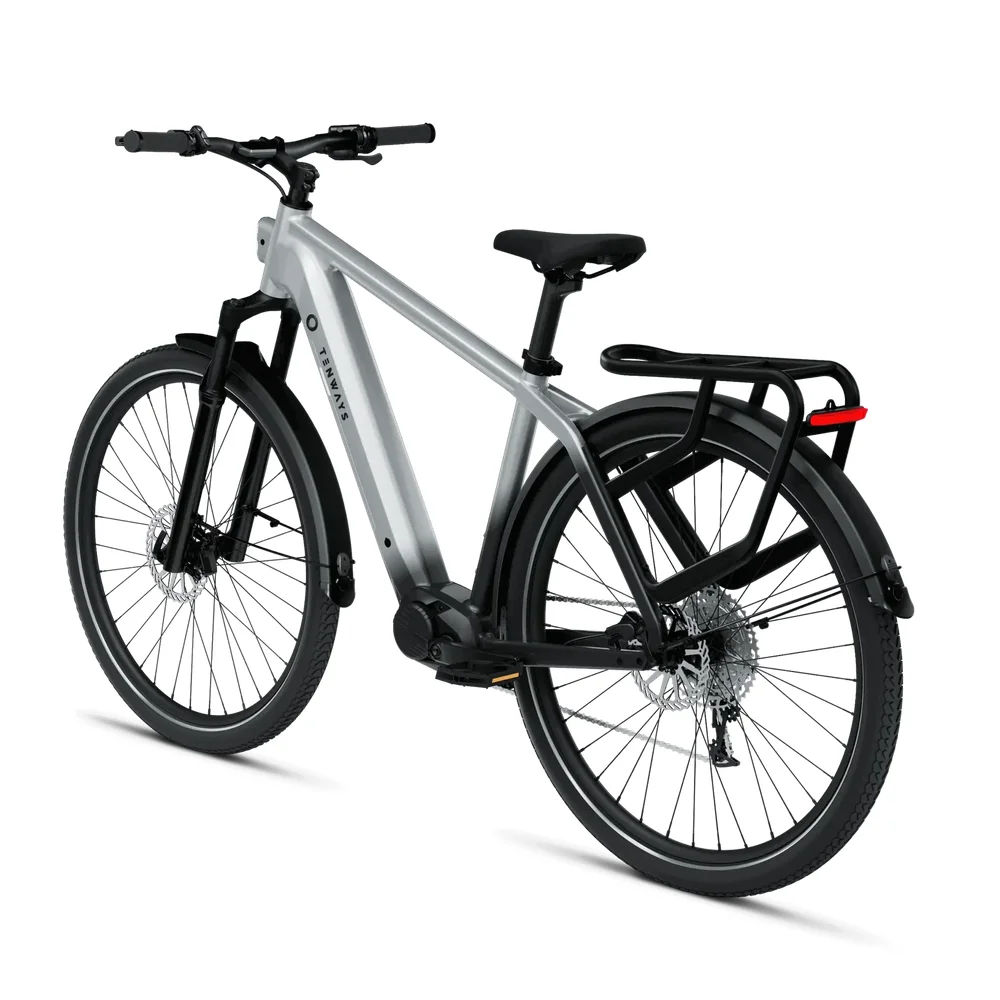

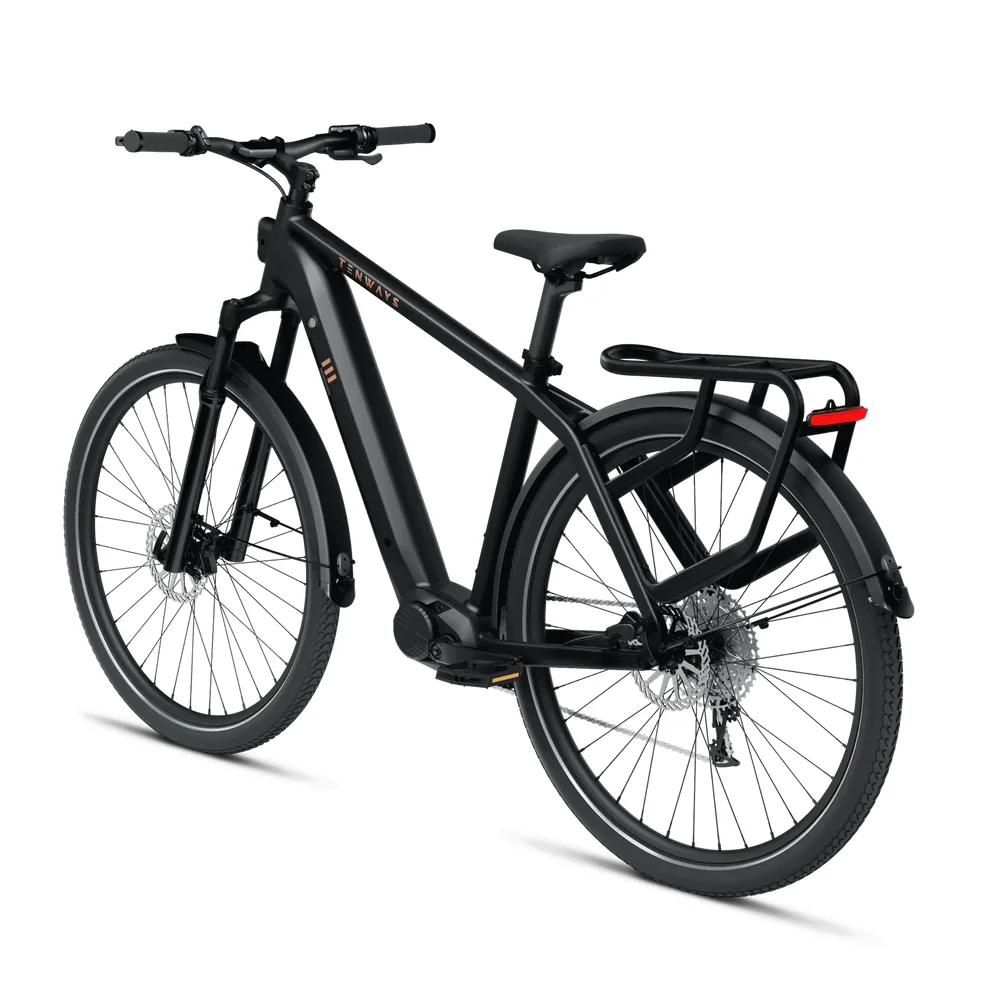

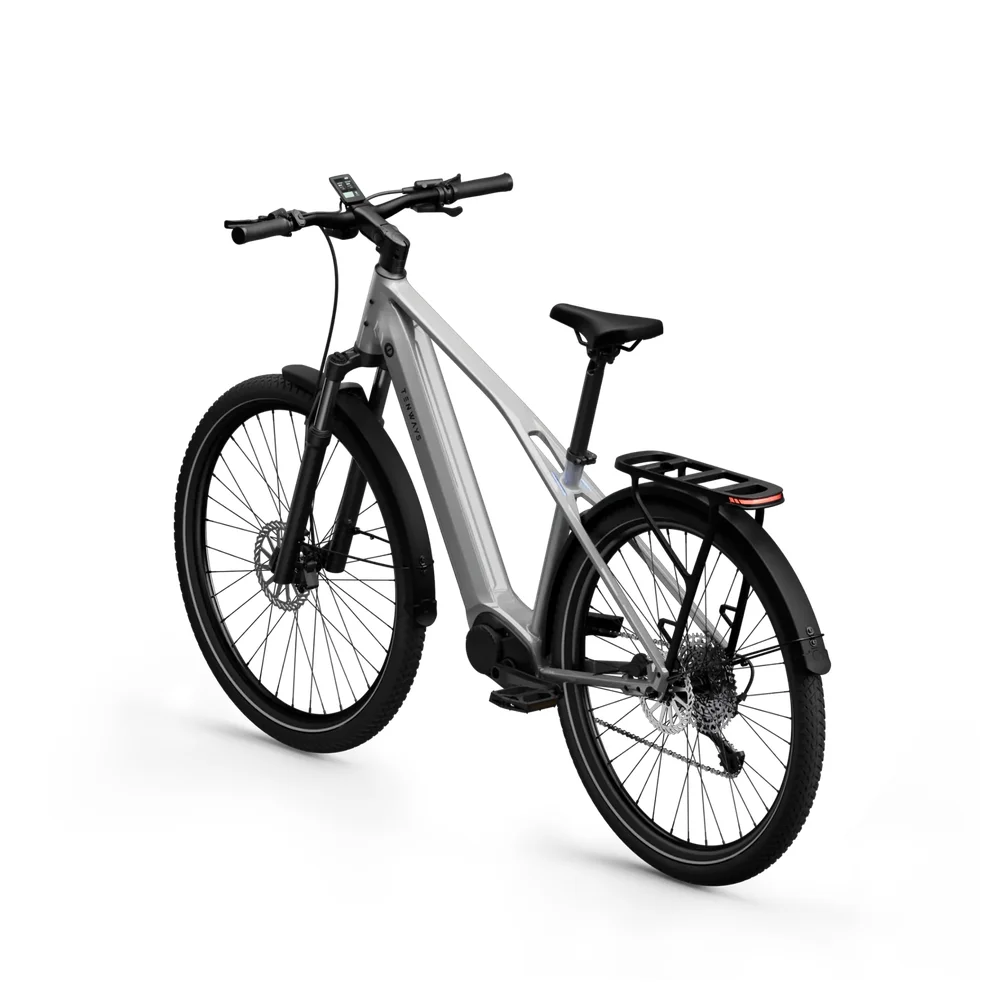

TENWAYS AGO X Electric Bike
+ 80 Nm Mid-Drive Motor
+ Shimano 10-speed
+ Road Legal
The TENWAYS AGO X Electric Bike is a powerful and versatile trekking e-bike designed for riders who want comfort, performance, and reliability across both urban roads and off-road adventures. Equipped with a high-torque mid-drive motor and a smooth Shimano drivetrain, the AGO X delivers strong climbing ability and balanced power distribution for a more natural riding experience. Its suspension fork and wide tyres help absorb rough terrain with ease, making it equally capable on gravel paths, countryside routes, and daily commutes.
Built with long-distance riding in mind, the AGO X features a fully integrated high-capacity battery that provides impressive range for extended journeys and weekend exploration. Hydraulic disc brakes offer dependable stopping power in all weather conditions, while integrated lighting, mudguards, and a rear carrier add practicality for commuting and touring alike. Combining rugged performance with premium comfort and modern styling, the TENWAYS AGO X is built for riders who want the freedom to tackle any route with confidence.
Top Features
- Bafang Mid-Drive Motor (250W, 80Nm): High-torque motor delivers strong climbing performance and smooth power transfer for confident riding on steep hills and mixed terrain.
- Shimano 10-Speed Drivetrain: Wide gear range provides smooth shifting and efficient performance for both city commuting and long-distance adventures.
- Integrated High-Capacity Battery: Seamlessly integrated battery offers extended riding range for commuting, touring, and weekend exploration.
- Suspension Front Fork: Absorbs bumps and uneven terrain to deliver a more comfortable and controlled riding experience on rough roads and trails.
- Hydraulic Disc Brakes: Powerful and reliable braking system provides confident stopping performance in wet and dry conditions.
- Wide All-Terrain Tyres: Enhanced grip and stability improve comfort and handling across gravel paths, countryside tracks, and urban streets.
- Integrated Front and Rear Lighting: Built-in lighting system improves visibility and safety for early morning, evening, and winter rides.
- Rear Carrier and Mudguards: Practical commuter-focused accessories make carrying cargo and riding in poor weather more convenient.
- Step-Through Trekking Geometry: Comfortable riding position reduces fatigue and improves comfort on longer journeys.
- Smart Display and App Connectivity: Easily monitor ride data, battery levels, and riding modes for a more connected riding experience.
Product Specification
| Model | TENWAYS AGO X |
|---|---|
| Motor | Special Edition: TENWAYS Mid-drive Motor (250 W Power, 80 Nm Max. Torque) |
| Classic Edition: Bafang M410 Mid-drive Motor (250W Power, 80 Nm Max. Torque) | |
| Controller | Integrated Controller of the Mid-drive Motor |
| Sensor | Integrated Torque Sensor of the Mid-drive Motor |
| Display | TFT LCD Color Display |
| Battery | Special Edition: 560 Wh (36 V, 15.6 Ah) Lithium-ion Battery with LG Cells |
| Classic Edition: 504 Wh ( 36 V, 14 Ah ) Lithium-ion Battery with LG Cells | |
| Lights | StVZO-compliant |
| Top Speed | 15.5mph |
| Range | 62 miles |
| Climbing Ability | Suitable for Climbing Slopes The actual performance would depend on the rider's physical strength. |
| Frame | 6061 Aerospace Aluminium Frame |
| Crankset | Aluminium Alloy Crankset |
| Wheels | 29'' Aluminium Rims |
| Drivetrain | Special Edition: SHIMANO CUES 10-speed Drivetrain |
| Classic Edition: SHIMANO DEORE 10-speed Drivetrain | |
| Brake | Hydraulic Disc Brakes |
| Tyres | CST Puncture-proof 29" Tires |
| Front Fork | Suspension Front Fork |
| Bottom Bracket | Fully-concealed Bottom Bracket |
| Weight* | Special Edition: Net weight: 24.3 kg (excluding all accessories) Full weight: 28.2 kg (including all accessories) Permissible Max. Weight: 145 kg (including the bike's own weight) MIK HD Rear Carrier, Max. Load: 27 kg |
| Classic Edition: Net weight: 27 kg (excluding all accessories) Full weight: 29 kg (including all accessories) Permissible Max. Weight: 150 kg(including the bike's own weight) Rear Carrier Max. Load: 25 kg | |
| Note | *All stated weight numbers have a +/- 3%-5% tolerance. Net weight includes the battery but excludes all accessories. Full weight includes the battery and all accessories. |
| SIZE(mm) | L |
|---|---|
| A Effective top tube | 624.8 |
| B Seat tube length | 470 |
| C Head tube | 160 |
| D Steering angle | 70 |
| E Seat tube angle | 73 |
| F Chainstay | 460 |
| G Wheelbase | 130.5 |
| H Standover | 843.2 |
| SIZE(mm) | M | L | XL |
|---|---|---|---|
| A Effective top tube | 610 | 625 | 640 |
| B Seat tube length | 470 | 500 | 530 |
| C Head tube | 145 | 160 | 170 |
| D Steering angle | 68.5 | 70 | 70 |
| E Seat tube angle | 74 | 73 | 73 |
| F Chainstay | 460 | 460 | 460 |
| G Wheelbase | 1161 | 1146.3 | 1161.9 |
| H Standover | 839 | 847 | 869 |
Review Video of the TENWAYS AGO X Electric Bike
Is it easy to assemble my TENWAYS AGO X?
The TENWAYS AGO X comes mostly assembled and only minor things need to be assembled. A tool kit and manual for assembly will be provided, and this should not take longer than 20-30 minutes to do.
Is the TENWAYS AGO X Waterproof?
Yes, the key electronic components are a minimum of IP65 water-resistant, and other parts are IPX4 water-resistant, but not completely waterproof. Short term, your e-bike can get wet and be in the rain, but any long-term exposure can cause serious problems. After riding in the rain, it is good practice to wipe your e-bike dry with a soft cloth.
Range and speed are dependent on riders’ weight, road surface, wind, and other conditions. This E-Bike is not fully waterproof, please do not ride it in extreme rain or wet conditions.
