Description

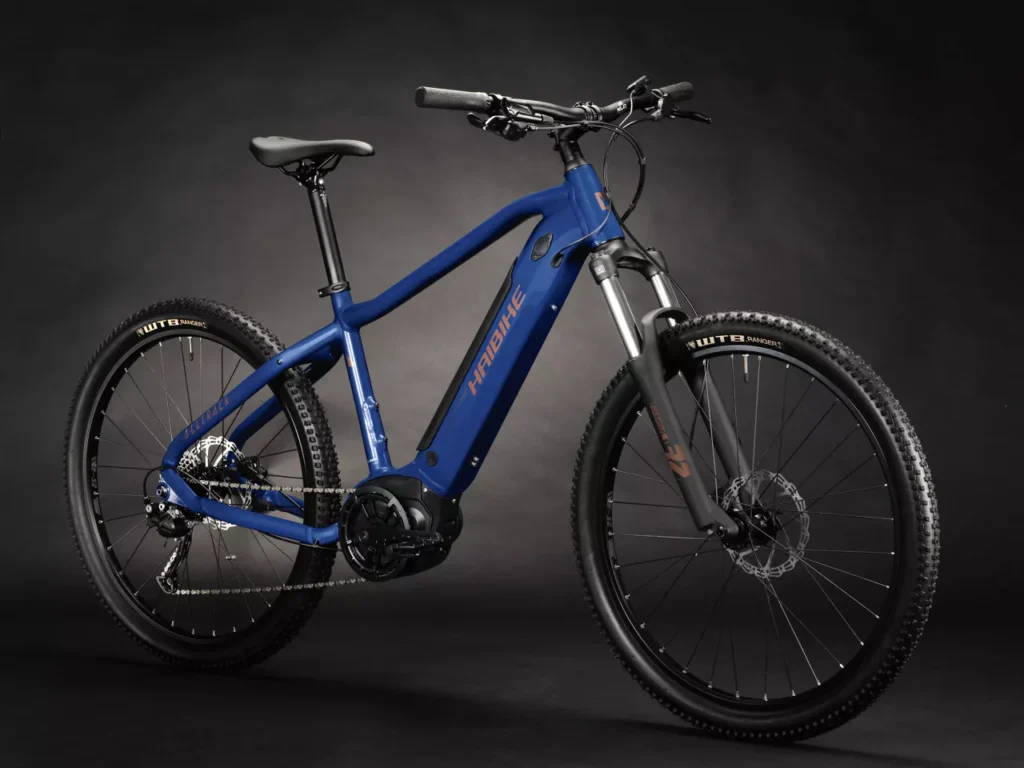

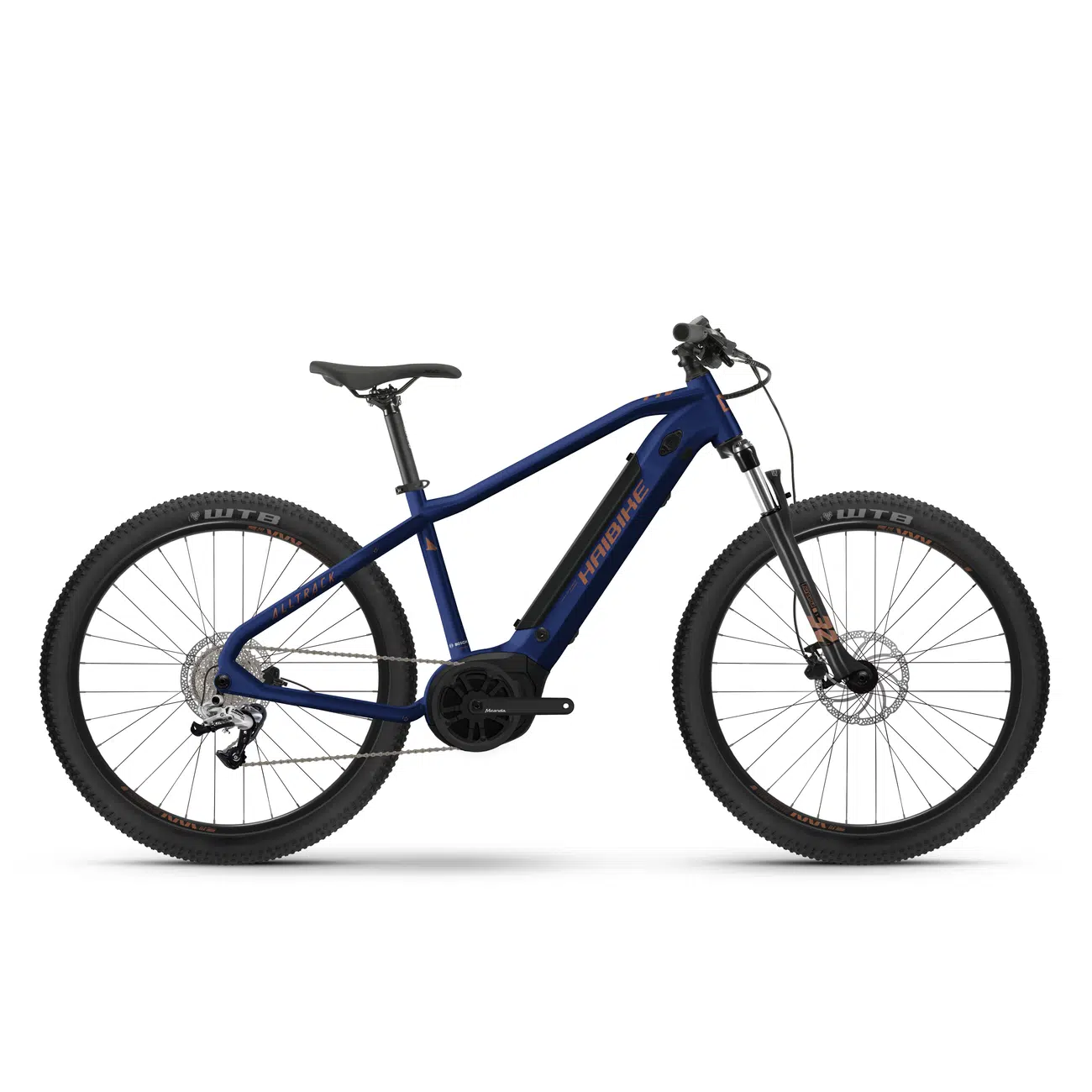

Haibike AllTrack 4 Electric Bike
+ Bosch Performance Line Motor
+ 500Wh battery
+ Road Legal
Built on a durable aluminium frame with a high rise profile, the Haibike AllTrack 4 is designed to deliver confident performance across a wide range of trails. Smaller frame sizes S and M come with agile 27.5 inch wheels for quick handling, while sizes M to XL feature efficient 29 inch wheels for smooth rolling over longer distances. Its 120 mm Suntour XCM32 Boost suspension fork absorbs bumps and rough terrain, ensuring a comfortable ride in changing conditions.
The Bosch Performance Line motor offers up to 75 Nm of torque, paired with a fully integrated Bosch InTube 500 Wh battery for consistent power and an impressive range. Shimano CUES 9 speed components provide smooth and reliable gear changes, while Alhonga hydraulic disc brakes deliver strong and precise stopping power in all weather. With a maximum combined weight capacity of 120 kg, the Haibike AllTrack 4 is a dependable, performance driven eMTB that is ready for adventure.
Top Features

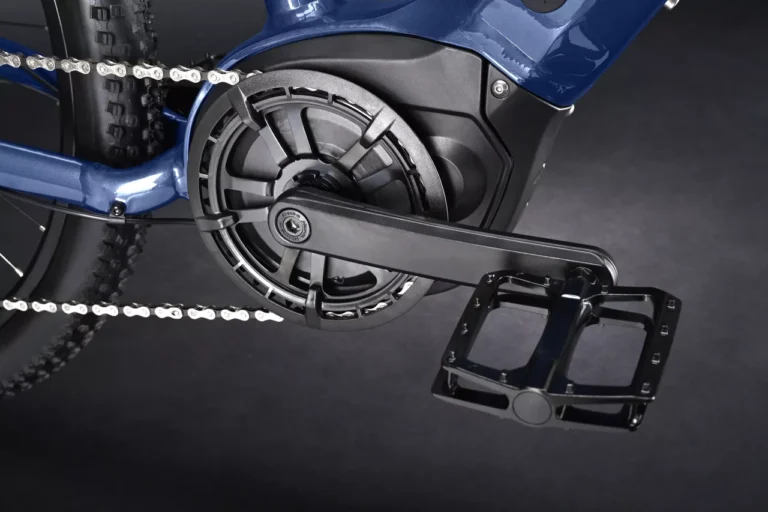

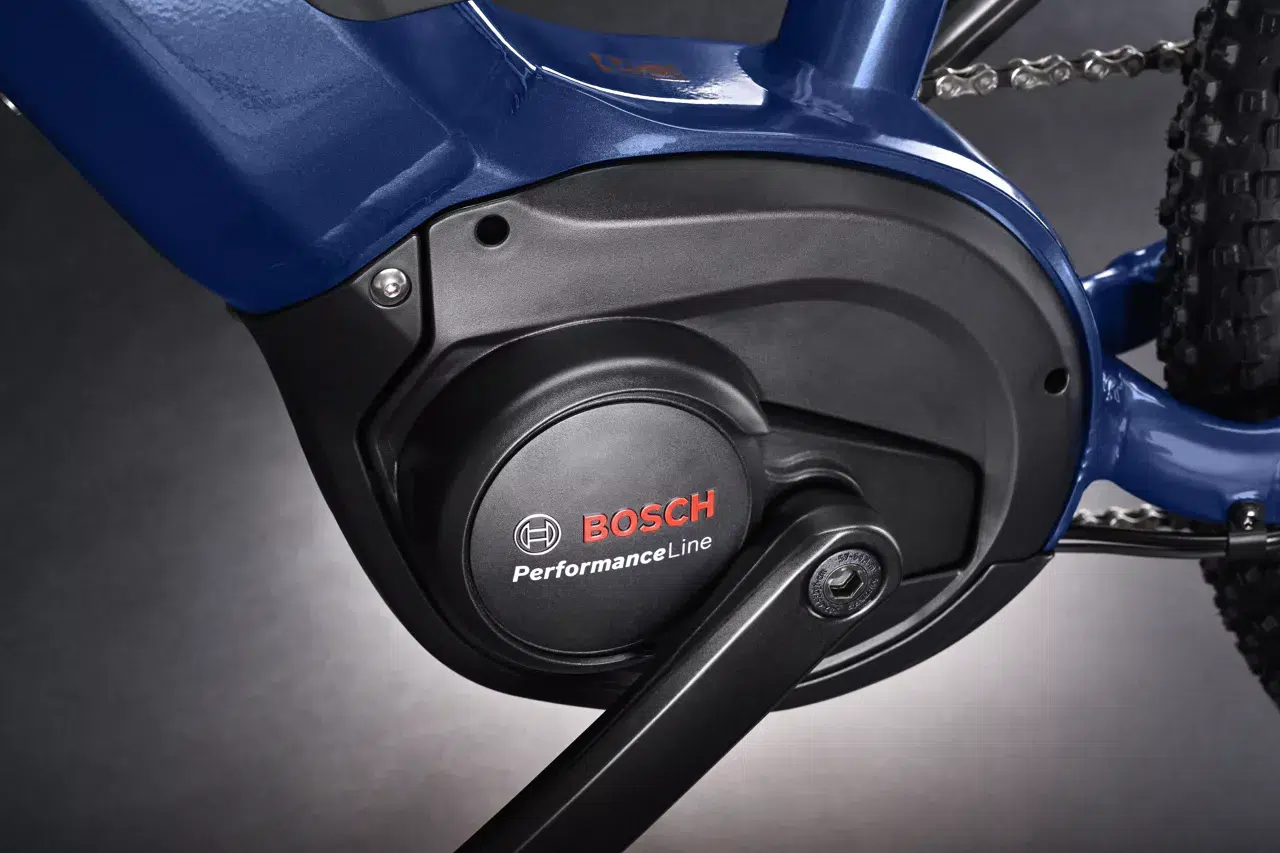

- Bosch Performance Line Motor : Provides strong, consistent assistance with 75 Nm of torque for confident climbing and acceleration.
- Integrated 500Wh Bosch InTube Battery : Sleekly built into the frame for a clean design and dependable long range performance.
- Choice of Wheel Sizes : 27.5 inch wheels on S and M frames for agility, or 29 inch wheels on M to XL frames for smooth efficiency.
- Suntour XCM32 Boost Suspension Fork : Offers 120 mm of travel to absorb bumps and maintain control on rough terrain.
- Shimano CUES 9 Speed Drivetrain : Delivers smooth, precise gear changes for varied riding conditions.
- Alhonga Hydraulic Disc Brakes : Ensures powerful, reliable stopping power in all weather conditions.

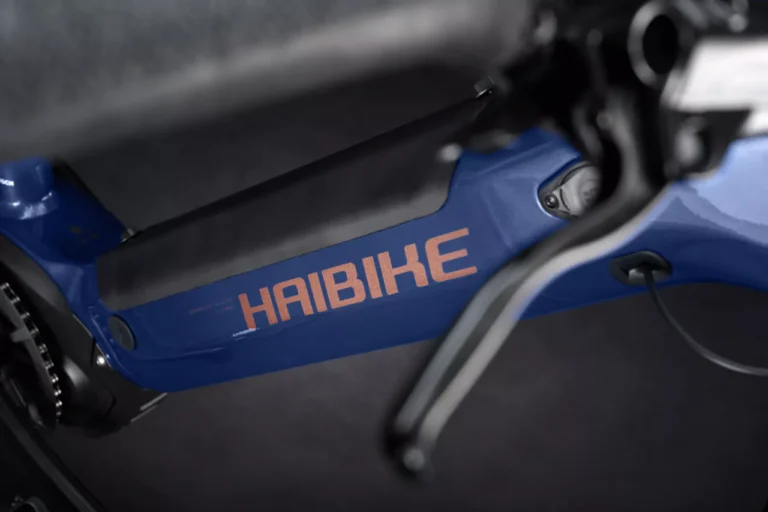

- Durable Aluminium Frame : Combines strength and stability with a high rise profile for comfort and control.
- Maximum Combined Weight Capacity 120 kg : Built to handle riders and gear with confidence.
Product Specification
| Model | Haibike AllTrack 4 |
|---|---|
| Battery | Bosch InTube 500 Wh |
| Charger | Bosch Charger 4A 220-240V |

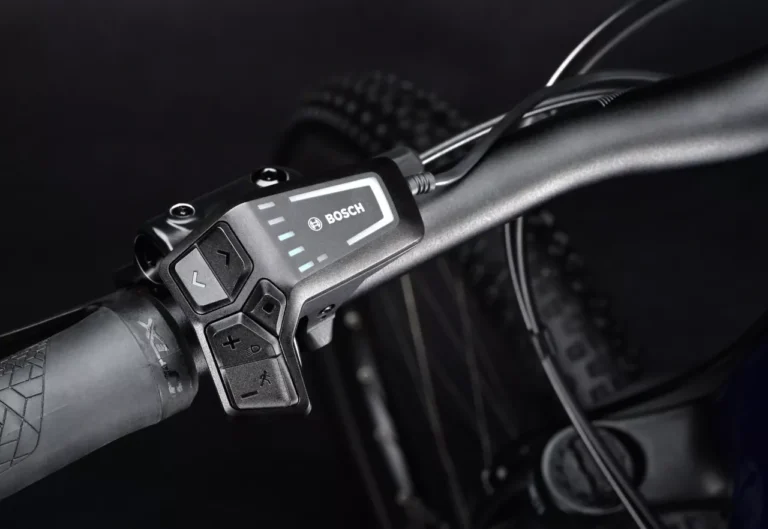

| Display | Bosch LED Remote |
| Max Speed | 15.5mph (25km/h) |
| Motor | Bosch Performance Line |
| Motor torque (nm) | 75 Nm |
| Cassette | Shimano CUES CS-LG300-9, HG |
| Chain | Shimano Chain CN-LG500 9-11s, LINKGLIDE |
| Crankset | Miranda Crankset No. 7, BNI + Direct Mount Chainring 170 |

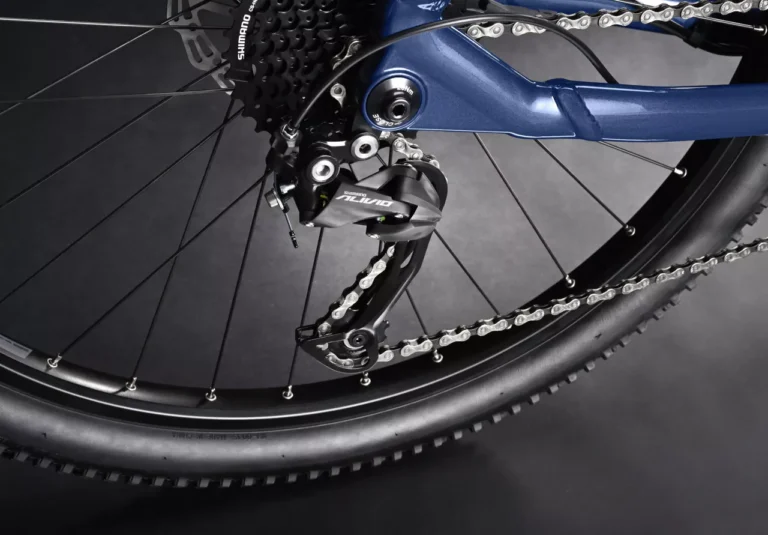

| Derailleur Rear | Shimano CUES RD-U3020-SGS 9s, Shadow |
| Frame | High Aluminium Uni |
| Gear | Shimano Derailleur |
| Max permissible weight (Rider, Cargo and Bike) | 120 kg (264.5 lbs) |
| Number of gears | 9 |

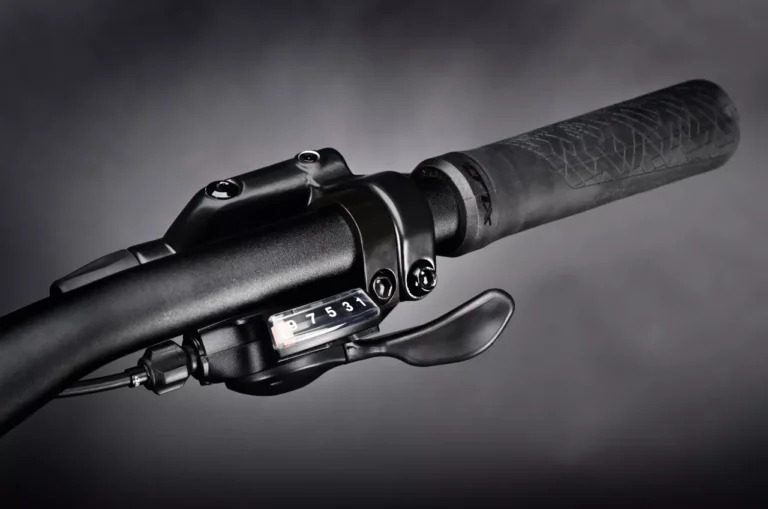

| Shifter Right | Shimano Triggershift CUES SL-U4000-9R, Rapidfire+ |
| Front Fork | Suntour XCM32-Boost DS 15AH2-110 120 mm |
| Brake light | No |

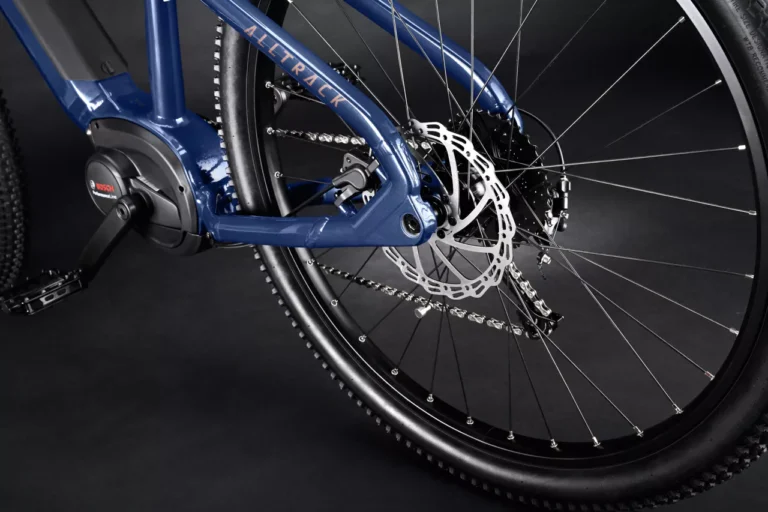

| Brake Rear | Alhonga Hydraulic Disc brake HT472, 2 pistons, 180 mm |
| Front brake | Alhonga Hydraulic Disc brake HT472, 2 pistons, 180 mm |
| Grip kind | VLG-1751D2, MTB Grips |
| Handgrip brand | Velo |
| Handlebar | Kalloy Riser Bar MTB Dia. 31.8 mm, Rise: 15 mm, backsweep 9? |
| Pedal | XLC VPE-527 Alloy w/ Reflector |

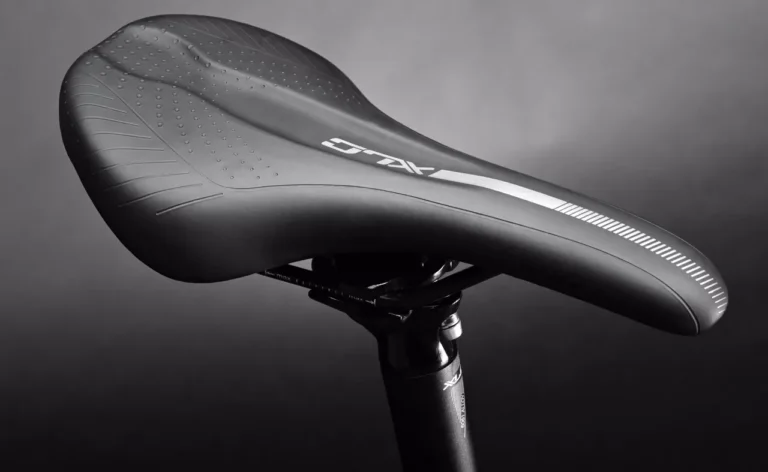

| Saddle | XLC DDK-2373A MTB Soft Touch |
| Seatpost | Kalloy Non Suspension SP-DC1, Dia. |
Review Video of the Haibike AllTrack 4 Electric Bike
Is it easy to assemble my Haibike AllTrack 4?
The Haibike AllTrack 4 comes mostly assembled and only minor things need to be assembled. A tool kit and manual for assembly will be provided, and this should not take longer than 20-30 minutes to do.
Is the Haibike AllTrack 4 Waterproof?
The Haibike AllTrack 4 is water-resistant, rated at IP65, but not waterproof. Short term, your e-bike can get wet and be in the rain, but any long-term exposure can cause serious problems..
Range and speed are dependent on riders’ weight, road surface, wind, and other conditions. This E-Bike is not fully waterproof, please do not ride it in extreme rain or wet conditions.
