Description

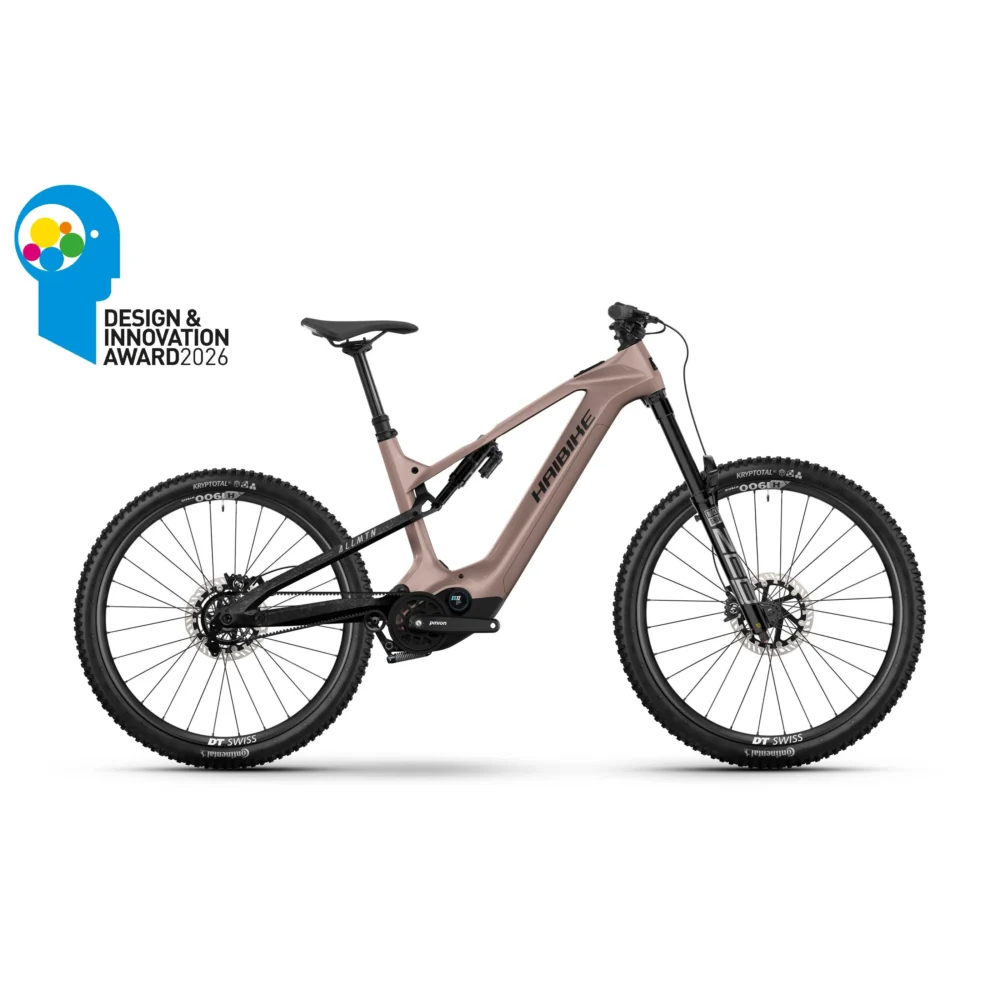

Haibike 2026 ALLMTN CF 11 Electric Bike
+ Bosch Performance Line CX Motor
+ 800Wh InTube Battery
+ New 2026 Model
The Haibike ALLMTN CF 11 TRN/IQ is built for riders who want to push boundaries and experience true next-level eMTB performance. At the heart of this bike is the innovative Pinion Motor.Gearbox.Unit (MGU), a fully integrated system that combines motor and transmission into a single, compact unit for seamless power delivery and ultra-precise shifting. Paired with a progressive mullet wheel setup and shorter chainstays, the ALLMTN CF 11 offers exceptional agility and control, making technical climbs and dynamic trail riding feel more intuitive than ever.
With 160mm of suspension travel front and rear, this full-suspension carbon eMTB is perfectly tuned for demanding terrain, delivering both comfort and confidence on aggressive descents. The powerful 800Wh battery ensures you can tackle long alpine adventures without range anxiety, while premium Magura disc brakes provide reliable stopping power when it matters most. Whether you’re chasing epic climbs or fast, flowing descents, the ALLMTN CF 11 TRN/IQ is designed to turn every ride into a high-performance mountain experience.
Haibike ALLMTN CF 11 TRN/IQ Top Features

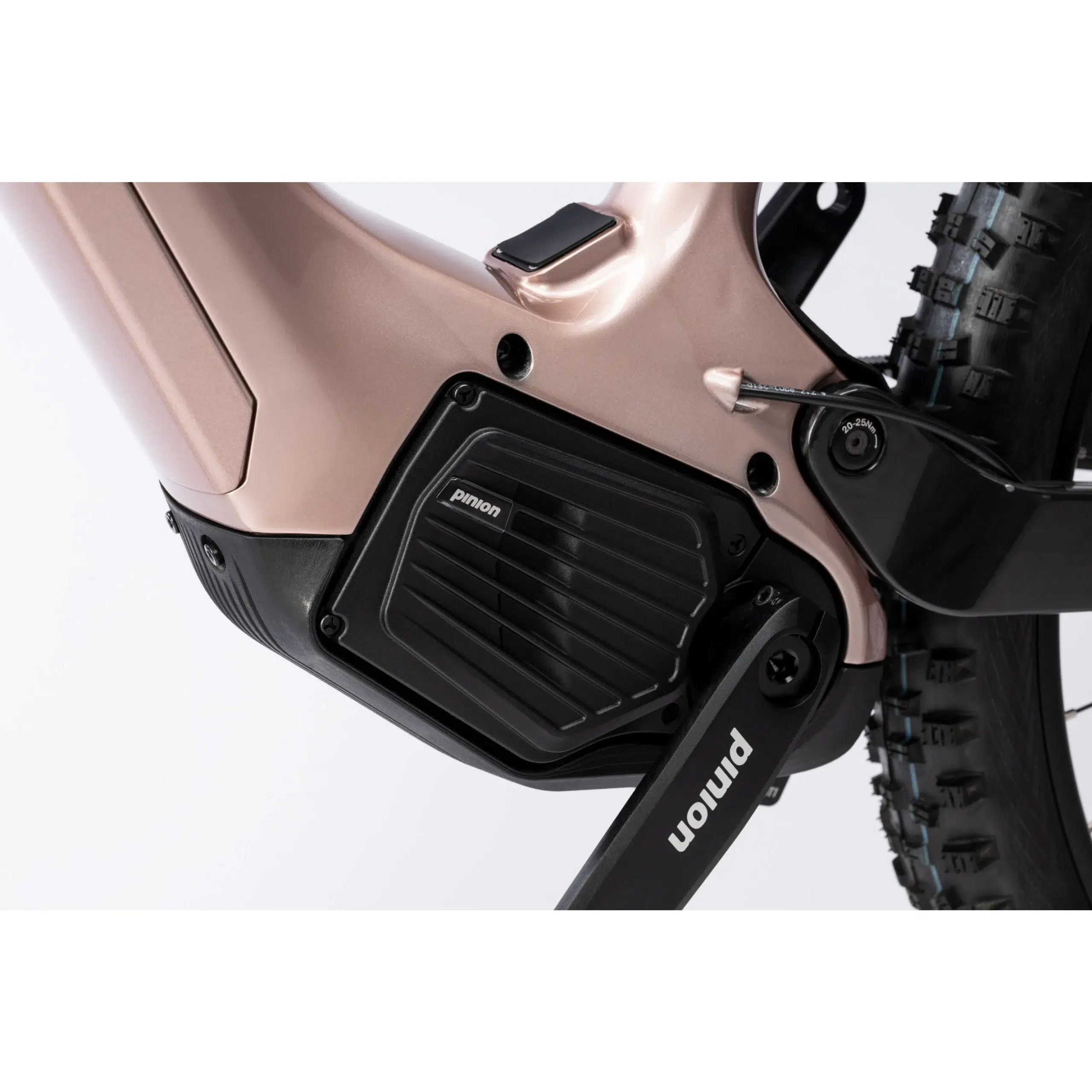

- Pinion Motor.Gearbox.Unit (MGU):
An advanced all-in-one drive system that seamlessly integrates motor and gearbox into a single unit, delivering ultra-smooth power transfer, lightning-fast electronic shifting, and minimal maintenance. - 800Wh Integrated Battery:
Provides massive range for long alpine adventures, allowing you to ride further, climb higher, and explore more without worrying about running out of power. - 160mm Front & Rear Suspension:
High-performance full suspension delivers exceptional control and comfort on rough, technical terrain, absorbing impacts and boosting confidence on aggressive descents. - Mullet Wheel Setup (29” Front / 27.5” Rear):
Combines the rollover capability of a 29” front wheel with the agility of a 27.5” rear for improved traction, stability, and playful handling on tight trails. - Carbon Frame with Optimised Kinematics:
Lightweight and stiff carbon construction paired with refined geometry ensures efficient climbing, responsive handling, and a balanced, intuitive ride feel. - Magura Hydraulic Disc Brakes:
Powerful, consistent braking performance gives you total control and safety, even on steep, high-speed descents in all conditions. - Professional PDI and Firmware Check: Every bike is fully tested by our expert technicians before dispatch, including a complete pre delivery inspection and firmware update, so your Haibike arrives in perfect working order and ready to ride!
Product Specification
| Model | Haibike ALLMTN CF 11 TRN/IQ |
|---|---|
| Battery | InTube 800Wh |
| Charger | Pinion FIT Standard Charger 48V |
| Display | Pinion FIT Master Node Display + Remote Pure |
| Max Speed | 15.5mph (25km/h) |
| Motor | Pinion E1.12 MGU, 600W, 85Nm |
| Motor torque (nm) | 85 Nm |
| Gear | Pinion Motor-Gearbox-Unit, 12-speed |

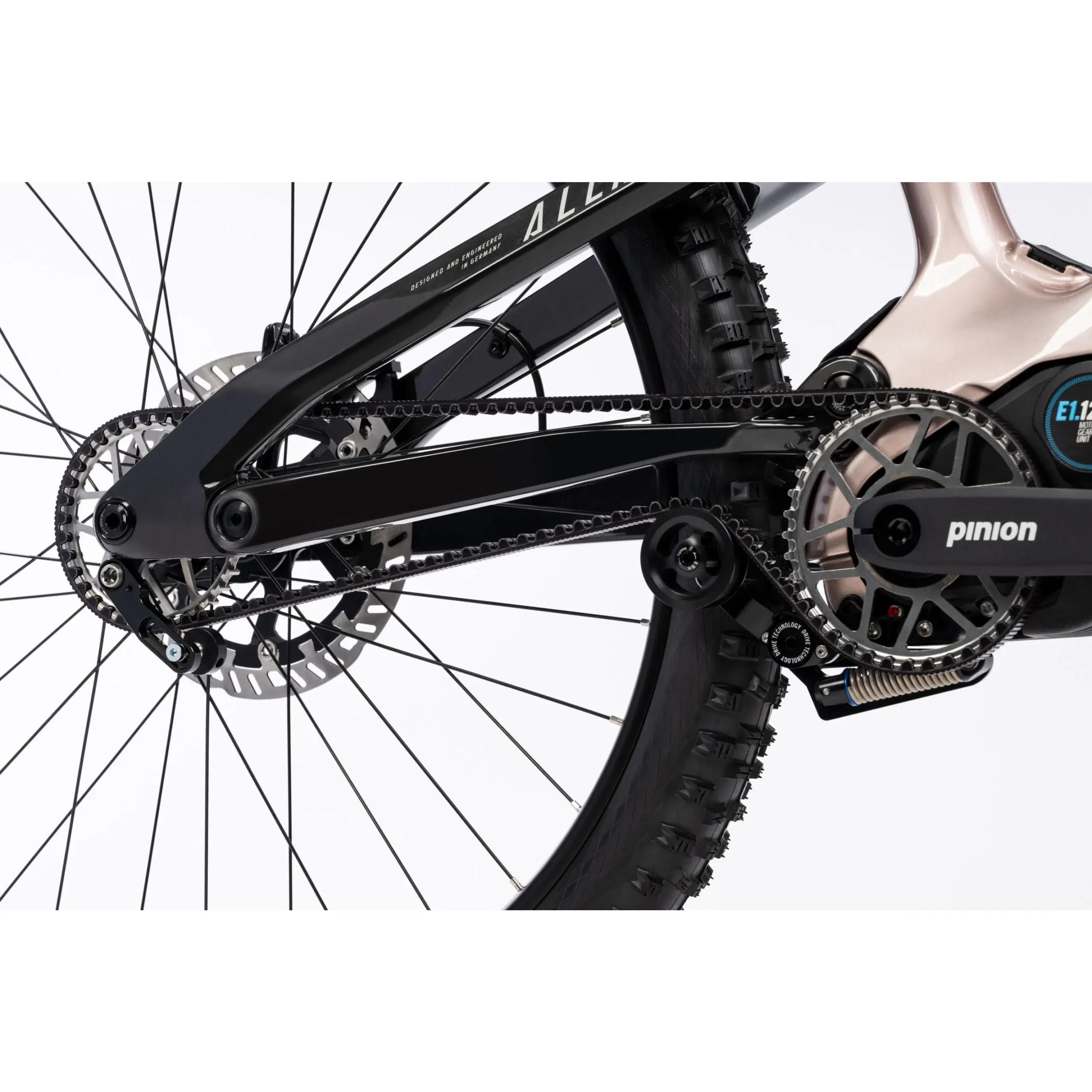

| Chain | Gates Carbon Drive Belt CDX, 120T |
| Number of gears | 12 |
| Shifter Right | Pinion Smart Shift TE1 E-Trigger, Trigger shifter |
| Frame | Carbon, Disc Brake Post Mount |

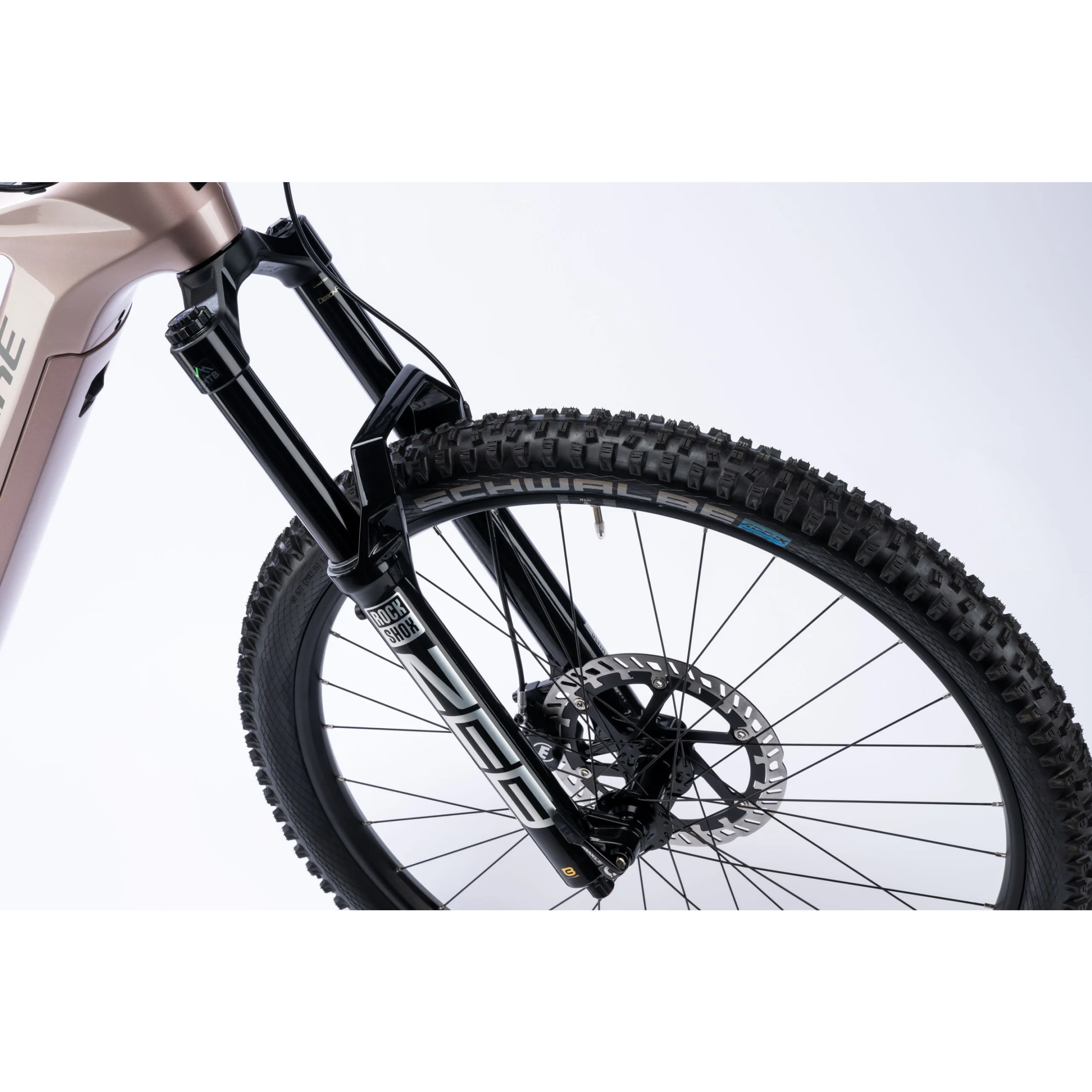

| Front Fork | RockShox ZEB Ultimate Charger 3.1 RC2, DebonAir, Offset: 44 mm, Travel: 160mm |
| Brake Rear | Magura MT5, 4 pistons, 203 mm |
| Front brake | Magura MT5, 4 pistons, 203 mm |
| Grips | XLC MTB Grip Set VLG-1751D2 |
| Handlebar | Haibike TheBar++ Dia. 31.8 mm 780 mm |
| Pedal | VP VPE-527 Alloy w/ Reflector |
| Saddle | Selle Royal Vivo |
| Seatpost | Limotec A4H Dropper, Dia. 34.9 mm, Travel: 125 mm |
| Front wheel size | DT Swiss H 1900 Spline, 29", 30 mm, 15x110 mm, Centerlock |
| Rear wheel size | DT Swiss H 1900 Spline, 27,5", 35 mm, 12x148 mm, CL, HG Single Speed |
| Tyre | Continental Kryptotal-Fr, Enduro Soft, foldable skin SL, 60-622 |
Is it easy to assemble my Haibike ALLMTN CF 11?
The Haibike ALLMTN CF 11 comes mostly assembled and only minor things need to be assembled. This should not take longer than 10-20 minutes to do.
Is the Haibike ALLMTN CF 11 Waterproof?
The Haibike ALLMTN CF 11 is water-resistant, rated at IP65, but not waterproof. Short term, your e-bike can get wet and be in the rain, but any long-term exposure can cause serious problems.
Range and speed are dependent on riders’ weight, road surface, wind, and other conditions. This E-Bike is not fully waterproof, please do not ride it in extreme rain or wet conditions.
