Description

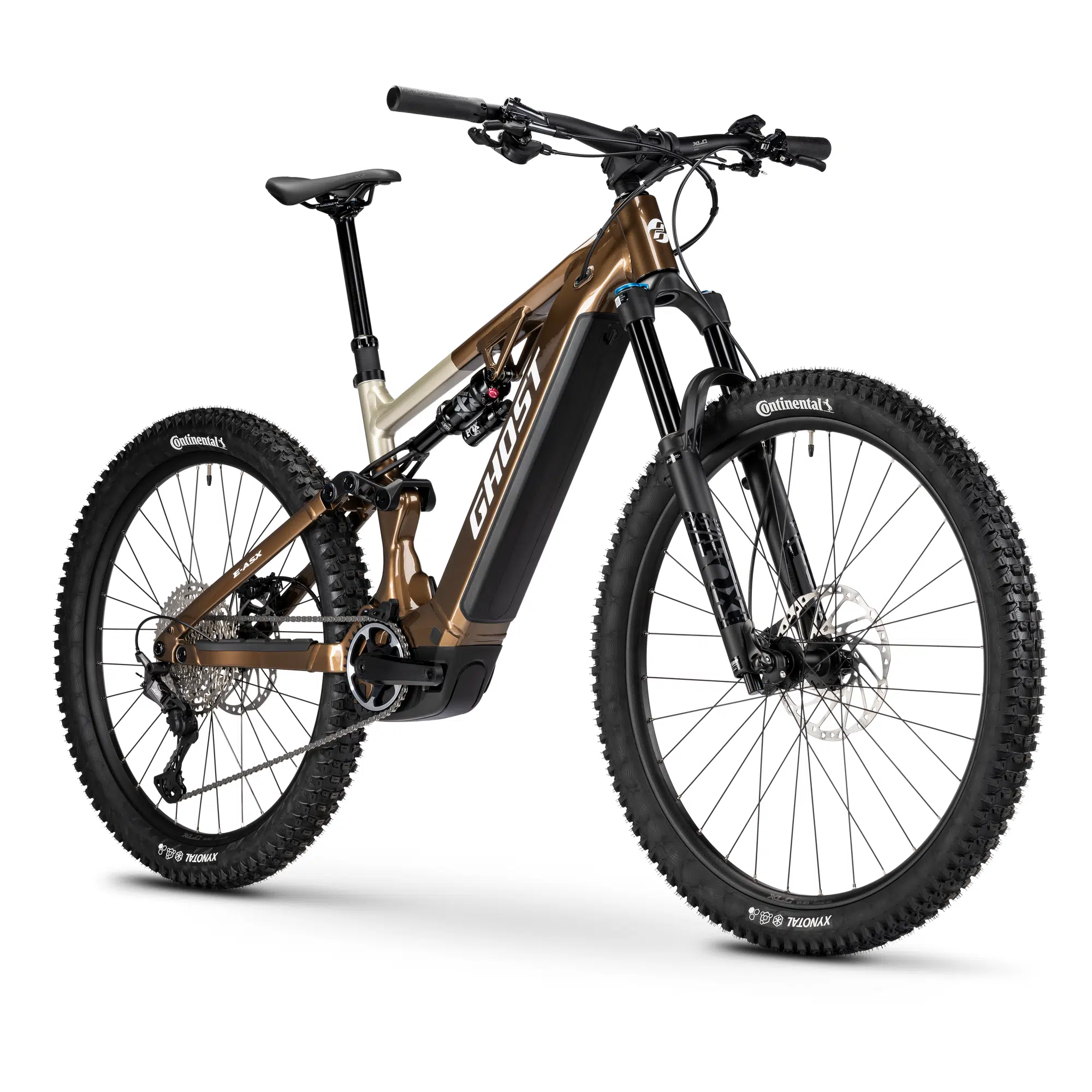

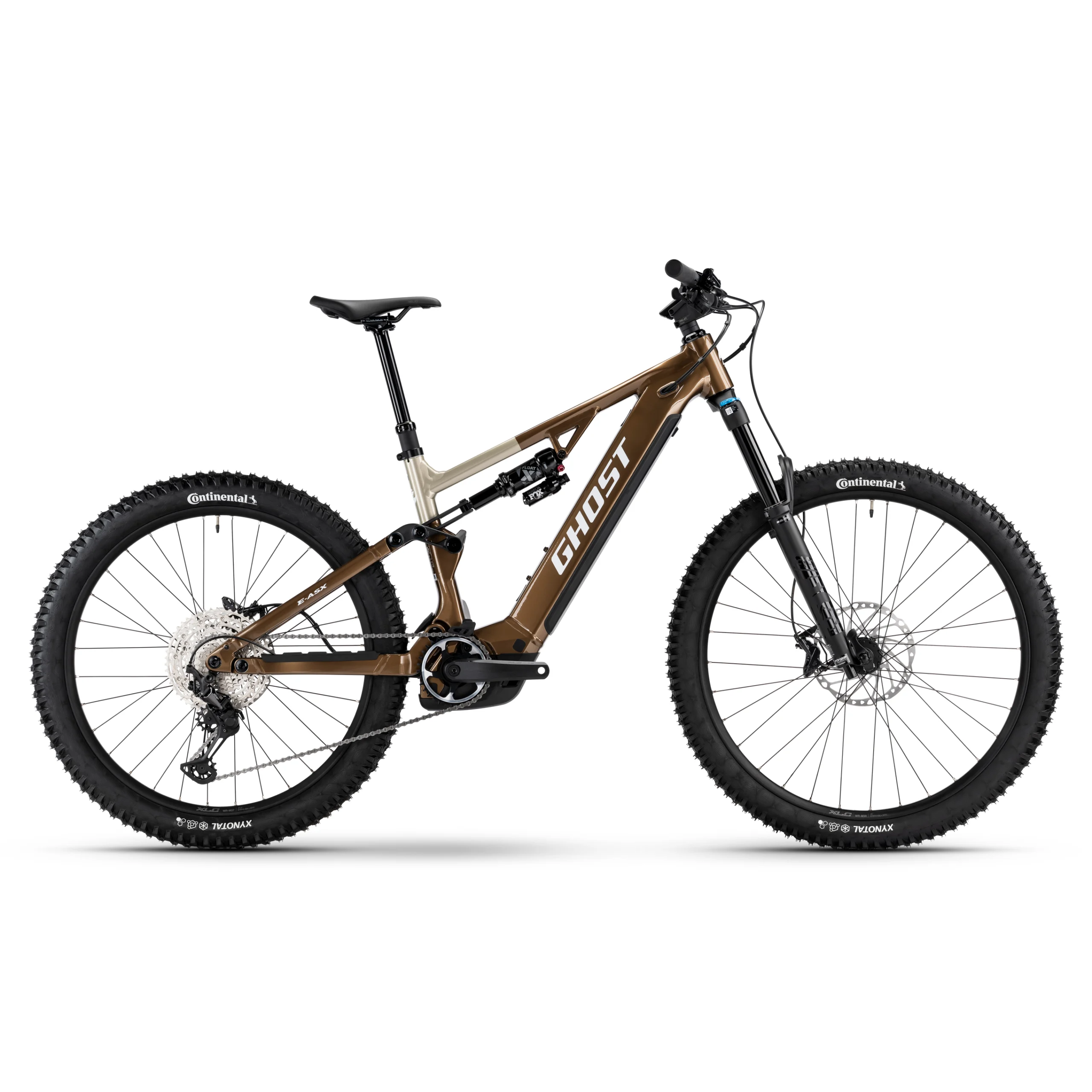

Ghost E-ASX ADVANCED Electric Bike
+ Bosch Performance Line CX Motor
+ 800Wh Powertube battery
+ New 2026 Model
Unleash your next adventure with the GHOST E-ASX Advanced 2026 Electric Bike, a full suspension electric mountain bike engineered to dominate every trail while delivering outstanding value. Built around a robust alloy frame and equipped with 160mm of front travel and 150mm at the rear, this bike is designed to smooth out aggressive descents and technical terrain with confidence. The Bosch Performance Line CX motor produces a powerful 100Nm of torque, seamlessly paired with a high capacity 800Wh PowerTube battery for exceptional range and relentless climbing power. Whether you are carving singletrack, exploring off road routes or pushing your limits in the mountains, the Ghost E-ASX Advanced gives you the strength and stamina to go further.
Premium components complete the package, including a FOX 36 Float Rhythm 160mm fork and FOX Float X Performance rear shock for trail-devouring control, plus Shimano Deore hydraulic disc brakes with 203mm rotors for confident stopping power in all conditions. The 12 speed Shimano Deore XT drivetrain ensures crisp, reliable shifting across demanding gradients, while the mullet wheel setup with a 29 inch front and 27.5 inch rear delivers the perfect balance of rollover speed and agile handling. Finished in a striking Uni brown bear stone glossy colourway, the GHOST E-ASX Advanced Electric Bike is built for performance and designed to turn every ride into an unforgettable experience.
Range Estimation Tool
To get a clearer idea of how far you can ride on a single charge, we recommend using the Bosch eBike Range Calculator. This tool helps estimate potential range based on real world riding conditions. Please make sure you select the correct motor and battery when using the calculator, as total distance will vary depending on battery capacity, rider and luggage weight, assistance level and overall riding style.
Important Information
This electric bike complies fully with current Electric Power Assisted Cycles regulations. Any modification to the bike will invalidate the warranty. Changes that increase motor power or assisted top speed may also make the rider legally liable. Except for statutory obligations, Rapid Scooter Master cannot accept responsibility for any injury or damage resulting from unauthorised modifications to this product.
Top Features

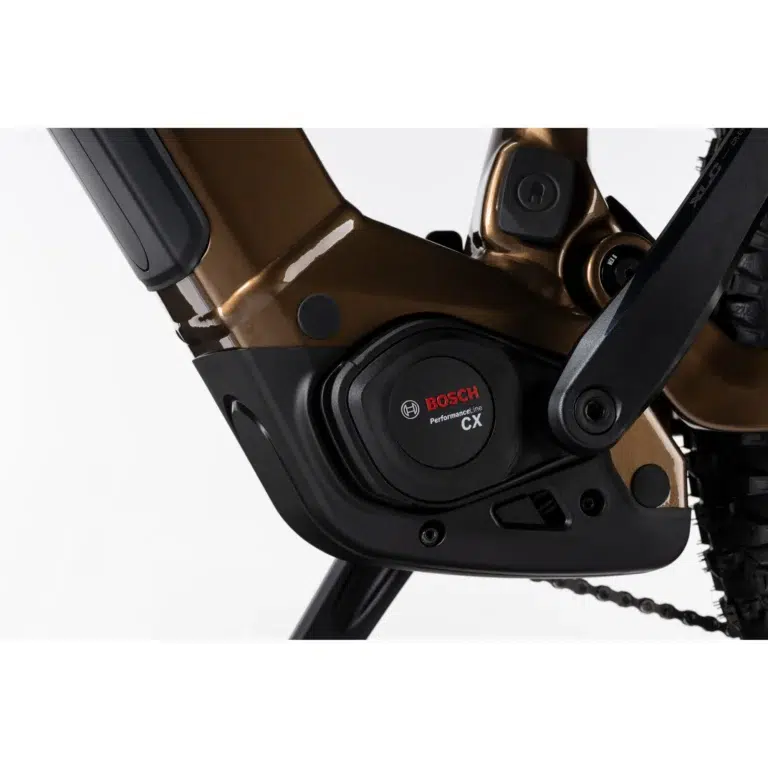

- Bosch Performance Line CX Motor: Delivers powerful, responsive assistance with 100Nm of torque, providing strong climbing support and smooth, controlled power delivery on demanding terrain.
- 800Wh Bosch PowerTube Battery: High capacity integrated battery offering impressive range for long rides and big days in the mountains, with reliable and consistent performance.
- FOX 36 Float Rhythm 160mm Fork: Trail ready suspension fork designed to absorb rough terrain with precision, improving control and confidence on technical descents.
- FOX Float X Performance Rear Shock: Advanced rear suspension with 150mm of travel, delivering excellent traction, stability and comfort across challenging trails.

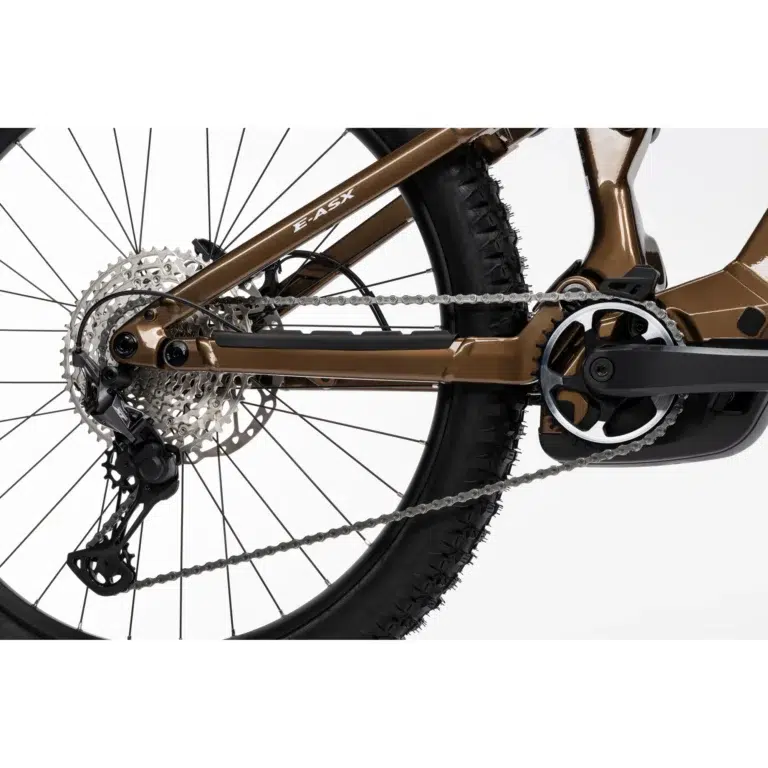

- Shimano Deore XT 12 Speed Drivetrain: Crisp, dependable shifting with a wide 10 to 51T gear range, ensuring efficient climbing and smooth cadence on varied gradients.

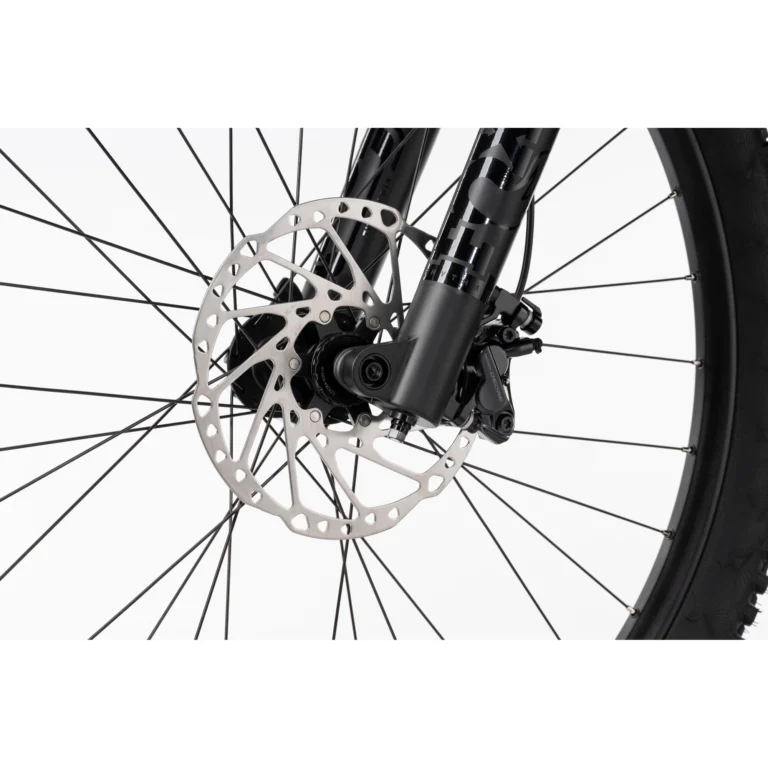

- Shimano Deore Hydraulic Disc Brakes: Four piston callipers with 203mm rotors provide powerful and consistent braking performance in all weather conditions.
- Mullet Wheel Setup: 29 inch front wheel for improved rollover and stability, paired with a 27.5 inch rear wheel for agile handling and responsive cornering.
- Alloy Full Suspension Frame: Durable and lightweight aluminium frame engineered for strength, stability and confident handling across all types of terrain.
- Professional PDI and Firmware Check: Every bike is fully tested by our expert technicians before dispatch, including a complete pre delivery inspection and firmware update, so your Haibike arrives in perfect working order and ready to ride!
Product Specification
| Model | Ghost E-ASX Advanced |
|---|---|
| Battery | Bosch InTube 800 Wh |
| Charger | Bosch Charger 4A 220-240V |
| Display | Bosch Kiox 300 + LED Remote |
| Max Speed | 15.5mph (25km/h) |
| Motor | Bosch Performance Line CX |
| Motor torque (nm) | 100 Nm |
| Brake Rear | Shimano Hydraulic Disc brake Deore BR-M6120, 4 pistons, 203 mm |
| Front brake | Shimano Hydraulic Disc brake Deore BR-M6120, 4 pistons, 203 mm |
| Grip kind | MTB Grip Set VLG-1751D2 |
| Handgrip brand | XLC |
| Handlebar | XLC Riser Bar HB-M34, Dia. 35 mm, Rise: 20 mm, backsweep 9deg. |
| Pedal | XLC Flat Pedal PD-M29 w/ Reflector + integrated Pins |
| Saddle | XLC MTB Sport Comfort SA-S11 Steel Rail 155 mm |
| Seatpost | XLC Dropperpost Dropper SP-T21, Dia. 34.9 mm, Travel: 200 mm 555 mm |
| Type of kickstand mount | KSA18 |
| Cassette | Shimano Deore CS-M6100-12, MICRO SPLINE |
| Chain | Shimano Deore CN-M6100 12s |
| Crankset | Miranda CR for Bosch BDU38, DM + XLC CR-E18 Crankarms 165 |
| Derailleur Rear | Shimano Deore XT RD-M8100-SGS 12s, Shadow+ |
| Gear | Shimano Derailleur |
| Shifter Right | Shimano Triggershift Deore SL-M6100-IR, Rapidfire+ |
| Front Fork | FOX Factory 36 Float Rhythm, GRIP, E-Optimized, QR 160 mm |
| Travel | 160 mm |
| Shock | FOX Factory FLOAT X Performance, A, 2pos, Evol LV, 210x55mm |
| Rear Travel | 150 mm |
| Front wheel size | 29inch |
| Rear wheel size | 27.5 inch |
| Rim | XLC WR-M39 Disc 30/622 32H 6,5 mm Valve |
| Tyre | Continental Xynotal Trail Endurance, foldable skin SL 60-622 |
| Tyre size ETRTO | 60-622 |
| Frame | HIGH Aluminium Uni |
| Maximum loadable weight | 150 kg (330lbs) |
GEOMETRY
| Frame size | S | M | L | XL |
|---|---|---|---|---|
| Reach in millimeters | 430 | 455 | 480 | 510 |
| Seat tube angle | 77 | 77 | 77 | 77 |
| Chainstay length in millimeters | 450 | 450 | 450 | 450 |
| Head tube angle | 65 | 65 | 65 | 65 |
| Top tube length in millimeters | 570 | 597 | 625 | 658 |
| Stack height (mm) | 628 | 632 | 646 | 659 |
| Stand over height (mm) | 793 | 796 | 796 | 796 |
| Bottom bracket drop (mm) | 9.9 | 9.9 | 9.9 | 9.9 |
| Seat tube length (mm) | 405 | 430 | 455 | 495 |
| wheelbase (mm) | 1208 | 1235 | 1266 | 1303 |
| Head tube length in millimeters | 105 | 110 | 125 | 140 |
Is it easy to assemble my GHOST E-ASX ADVANCED?
The GHOST E-ASX ADVANCED comes mostly assembled and only minor things need to be assembled. A tool kit and manual for assembly will be provided, and this should not take longer than 20-30 minutes to do.
Is the GHOST E-ASX ADVANCED Waterproof?
The GHOST E-ASX ADVANCED is water-resistant, rated at IP65, but not waterproof. Short term, your e-bike can get wet and be in the rain, but any long-term exposure can cause serious problems..
Range and speed are dependent on riders’ weight, road surface, wind, and other conditions. This E-Bike is not fully waterproof, please do not ride it in extreme rain or wet conditions.
