Description

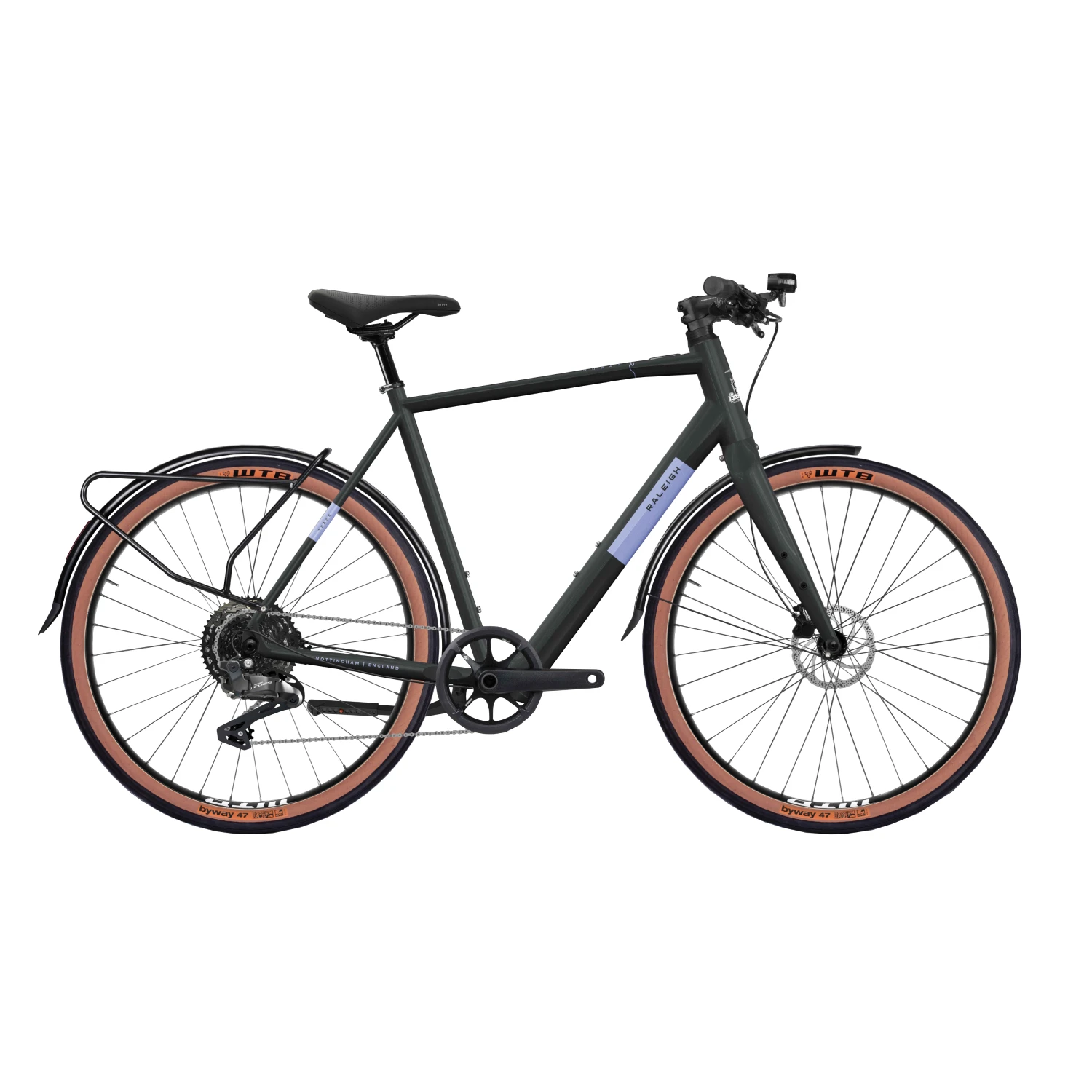

Raleigh Trace Electric Bike
+ Mahle X35 Motor
+ 250Wh Battery
+ Road Legal
Imagine trading rush hour stress for instant freedom with no timetables, traffic jams, or diversions – just you and the open road. With the Raleigh Trace Electric Bike, it’s easier than ever to leave the gridlock behind. Weighing only 16.5 kg, this nimble machine is built to glide through city life effortlessly. Beneath its sleek, unassuming frame lies a 250Wh battery paired with an efficient Mahle Ebikemotion X35 rear hub motor, delivering up to 50 miles of assisted riding in ideal conditions. Whether you’re commuting across town or cruising to brunch, you’ll ride with ease, confidence, and a sense of adventure.
Every detail of the Raleigh Trace has been crafted for urban riders who want practicality without compromise. The lightweight alloy 6061 frame and carbon fork combine agility with strength, while hydraulic disc brakes and a 9-speed Shimano drivetrain provide smooth, reliable control. With its discreetly integrated battery, built-in lighting, and comfortable design, the Raleigh Trace transforms your daily routine into something you genuinely look forward to. No sweat, no grind, just ride.
Top Features
Mahle Ebikemotion X35 Motor: Provides smooth, natural assistance with responsive power for an effortless ride through the city.
250Wh Integrated Battery: Seamlessly built into the frame for a sleek look, offering up to 50 miles of pedal-assist range on a single charge.
Lightweight Alloy Frame: Crafted from 6061 aluminium with a carbon fork, combining strength and agility for quick, comfortable handling.
9-Speed Shimano Drivetrain: Delivers precise, reliable gear changes for confident control on every journey.
Hydraulic Disc Brakes: Offer powerful, consistent stopping performance in all weather conditions.
Integrated Lighting System: Keeps you visible and safe with front and rear lights powered directly by the main battery.
Urban-Ready Design: At just 16.5 kg, the Trace is perfect for commuting, exploring, or simply enjoying the ride—no sweat, no grind, just ride.
Product Specification
| Model | Raleigh Trace |
|---|---|
| Front Light | AXA Compact Line 35 |
| Max permissible weight (Rider, Cargo and Bike) | 120 kg (264.5 lbs) |
| Mudguards | Curana full mudguard set |
| Rear Carrier | Low profile Rear Carrier |
| Rear Light | Integrated into Mudguard |
| Front Tyre | 700x40c WTB ByWAY tanwall |
| Front Wheel | 700c double side wall rim with thru axle aluminium hub 28H |
| Inner Tubes | 622x40 schrader valve |
| Rear Tyre | 700x40c WTB ByWAY tanwall |
| Rear Wheel | 700c double side wall rim with X35 motor hub 32H |
| Rim | 700c double side wall rim with thru axle aluminium hub 28H |
| Bottom Bracket | Pressfit BB 86mm |
| Cassette | Shimano HG200 9 speed 11-34t |
| Chain | KMC x9 9 speed chain |
| Crankset | Aluminium crank with direct mount chainring and Chainguard 40t 170mm |
| Drivetrain | Chain |
| Gear Shift | Derailleur Gear |
| Pedals | Aluminium Platform Pedal |
| Rear Derailleur | Shimano Alivio 9 speed rear derailleur |
| Front Brake | Tektro R280 Flat Mount Hydraulic Disc Brake, 160mm |
| Number of Gears | 9 |
| Rear Brake | Tektro R280 Flat mount hydraulic disc brake, 160mm |
| Rear Shifter | Shimano Acera rapidfire 9 speed shifter |
| Grips | XLC Comfort Grips |
| Handlebar | Aluminium Handlebar 640mm |
| Saddle | Selle Royal Vivo |
| Seatpost | Aluminium Seatpost 27.2x350mm |
| Seatpost Clamp | Aluminium Clamp 31.9 |
| Stem | Aluminium Stem XS/S-80mm, M-90mm, L-100mm |
| Battery | MAHLE X35 internal battery 250Wh |
| Battery Charger Type | MAHLE X35 2A |
| Battery Charging Time | Up to 4 hours |
| Battery Integration | Internal |
| Battery Watts per Hour | 250Wh |
| Display | MAHLE X35 internal battery 250Wh |
| Max Range | Up to 50 miles (80.46 km) |
| Motor | MAHLE X35 rear hub |
| Motor Position | Rear Wheel |
| Sensor | MAHLE Sensor |
| Electric | Yes |
| Fork Material | Carbon |
| Fork Type | Rigid tapered carbon fork |
| Material | Aluminium 6061 |
| Frame Shape | Crossbar |
| Total Bike Weight | 16.5kg |
| Speed | Up to 15.5mph (25km/h) |
| Throttle | Without |
| Foldable | No |
Is it easy to assemble my Raleigh Trace?
The Raleigh Trace comes mostly assembled and only minor things need to be assembled. This should not take longer than 20-30 minutes to do.
Is the Raleigh Trace Waterproof?
The Raleigh Trace is water-resistant, rated at IP65, but not waterproof. Short term, your e-bike can get wet and be in the rain, but any long-term exposure can cause serious problems..
Range and speed are dependent on riders’ weight, road surface, wind, and other conditions. This E-Bike is not fully waterproof, please do not ride it in extreme rain or wet conditions.
