Description

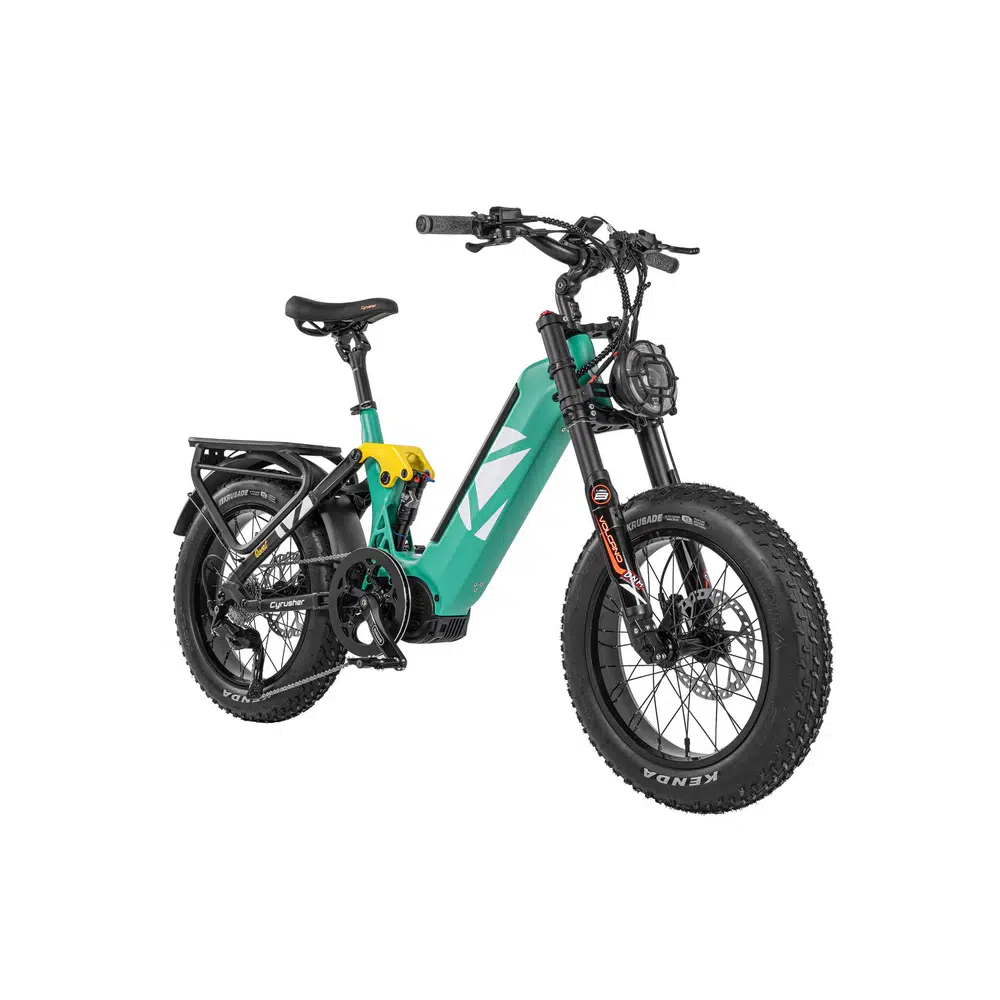

Cyrusher Quest Electric Bike
+ Torque Sensorย
+ย Bafang M620 Mid-Drive Motor
+ Road Legal
Elevate every ride with the Cyrusher Quest Electric Bike, the first ever 20โณ step through electric bike featuring a powerful mid drive motor and full suspension. Equipped with a Bafang M620 mid drive motor delivering up to 160 Nm of torque, the Quest offers smooth acceleration and responsive power transfer via a built in torque sensor. Itโs powered by a robust 48V 20Ah lithium ionย battery, offering up to 80 miles (130 km) of range on a single charge, ideal for everything from long commutes to weekend adventures. The sleek step-through aluminium frame makes boarding effortless, while the smart 3.7โณ full colour LCD display keeps you informed of speed, battery level, and pedal assist mode at a glance.
Designed for comfort, control, and confidence in any terrain. The Cyrusher Quest features a full suspension setup with a DNM 160 mm front USD 8FAT fork and a 185 mm DNM air shock rear suspension, plus a suspension seat post,ย all working together to smooth out rough terrain and offer superior ride comfort. High traction 20″ ร 4″ Kenda puncture resistant fat tyres provide grip and stability, while Starunion 4 piston hydraulic brakes with 203 mm discs ensure precise stopping power. With a payload capacity of up to 200 kg (440 lbs), Shimano 9 speed drivetrain, and premium components throughout, the Cyrusher Quest supports a wide range of riders and terrains without compromise.
Top Features
- Powerful Bafang M620 Mid-Drive Motor : Delivers up to 160 Nm of torque for strong climbing power and smooth, responsive acceleration.
- Long-Range 48V 20Ah Lithium-Ion Battery : High-capacity battery offers up to 80 miles (130 km) of range per charge.
- Step-Through Frame Design : Easy to mount and dismount, ideal for all rider levels and mobility needs.
- Full Suspension System : DNM 160 mm front fork and 185 mm air shock rear suspension for a smooth ride on rough terrain.
- Torque Sensor Pedal Assist : Advanced sensing technology provides natural, efficient motor support based on pedalling force.
- 3.7โ Full-Colour LCD Display : Easily track speed, battery life, assist level, and more at a glance.
- Puncture-Resistant 20โ ร 4โ Kenda Fat Tyres : Provide excellent grip, stability, and comfort across various surfaces.
- Starunion 4-Piston Hydraulic Disc Brakes : 203 mm rotors ensure safe, reliable stopping power in any condition.
- Shimano 9-Speed Drivetrain : Offers a wide gear range for versatile riding across hills and flats.
- High Payload Capacity : Supports up to 200 kg (440 lbs), making it suitable for larger riders or cargo.
Product Specification
Model | Cyrusher Quest |
---|---|
Material | 6061 Aluminium Alloy |
Battery | 48V 20Ah Removable Battery |
Motor Power | 250W (160N.m Torque) Mid-Drive Motor |
Range | Up to 80 miles (129 km) on PAS 1 |
Speed | Up to 15.5mph (25km/h) |
Throttle | Without |
Foldable | No |
Charging Time | About 4-5 Hours |
Brakes | Starunion 220Pyd 4-Piston With 203 Discs |
Transmission | 9 Speed Shimano Rear Derailleur |
Display | 3.7" LCD display |
Max Load | 200 kg (440 lbs) |
Bike Weight inc Battery | Approx. 47.3 kg (104.2 lbs) |
Tyres | Kenda 20" X 4" Puncture-Resistant Fat Tyres |
Cyrusher Quest Dimensions | |
---|---|
Frame Size | Step-Through |
Reach | 17.9''/45.5cm |
Standover Height | 15.5''/39.5cm |
Wheelbase | 46.5''/118cm |
Min Saddle Height | 33.7''/85.5cm |
Max Saddle Height | 41.3''/105cm |
Total Length | 68.5''/174cm |
Top Tube Length | 24.8โ/63cm |
Rider Height: 5'1" ~ 6'2" (155cm ~ 190cm) Payload Capacity: 200KG (440 lbs) |
Review Video of the Cyrusher Quest Electric Bike
Is it easy to assemble my Cyrusher Quest?
The Cyrusher Quest comes mostly assembled and only minor things need to be assembled. A tool kit and manual for assembly will be provided, and this should not take longer than 20-30 minutes to do.
Is the Cyrusher Questย Waterproof?
The Cyrusher Quest is water-resistant, but not waterproof. Short term, your e-bike can get wet and be in the rain, but any long-term exposure can cause serious problems..
Range and speed are dependent on riders’ weight, road surface, wind, and other conditions. This E-Bikeย is not fully waterproof, please do not ride it in extreme rain or wet conditions.
